Description

What is ASUS PRIME H610M-CS D4?

The ASUS PRIME H610M-CS D4 is a Micro-ATX motherboard based on the Intel® H610 chipset designed for Intel 12th, 13th, and 14th Gen processors using the LGA1700 socket. It is an upgraded variant over basic H610 boards, offering dual M.2 slots, DisplayPort output, and better expandability for budget and mid-range PC builds.

Key Specifications

Chipset: Intel® H610
Socket: LGA1700
Form Factor: Micro-ATX

Supported Processors

Supports:

• Intel® Core™ 14th Gen Processors
• Intel® Core™ 13th Gen Processors
• Intel® Core™ 12th Gen Processors
• Intel® Pentium® Gold
• Intel® Celeron®

CPU Technologies

• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Memory Support

RAM Configuration

• 2 x DDR4 DIMM Slots
• Maximum Capacity: 64GB
• Dual Channel Architecture

Supported Memory Speeds

• DDR4-3200
• DDR4-3000
• DDR4-2933
• DDR4-2800
• DDR4-2666
• DDR4-2400
• DDR4-2133

Features

• Intel® XMP Support
• Non-ECC Unbuffered Memory

Graphics Outputs

Supports integrated graphics from Intel CPUs.

Video Ports

• 1 x DisplayPort 1.4
• 1 x HDMI 2.1
• 1 x VGA (D-Sub)

Maximum Resolution

• Up to 4K@60Hz via HDMI
• Up to 4K@60Hz via DisplayPort

Expansion Slots

PCIe Slots

CPU

• 1 x PCIe 4.0 x16 Slot

Chipset

• 1 x PCIe 3.0 x1 Slot

Storage Support

M.2 Slots

• 2 x M.2 NVMe Slots

M.2_1

• PCIe 3.0 x4
• Supports 2242/2260/2280 SSDs

M.2_2

• PCIe 3.0 x2
• Supports 2242/2260/2280 SSDs

SATA

• 4 x SATA 6Gb/s Ports

Networking

LAN

• Realtek 1Gb Ethernet

USB Connectivity

Rear USB

• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0 Type-A

Front USB Headers

• 1 x USB 3.2 Gen 1 Header
• 2 x USB 2.0 Headers

Audio

Audio Codec

• Realtek 7.1 HD Audio CODEC

Features

• Audio Shielding
• Premium Audio Capacitors
• Dedicated Audio PCB Layers
• Front Panel Jack Retasking
• 24-bit / 192kHz Audio Playback

Cooling & Fan Headers

• 1 x CPU Fan Header
• 2 x Chassis Fan Headers

RGB Support

• 1 x RGB Header

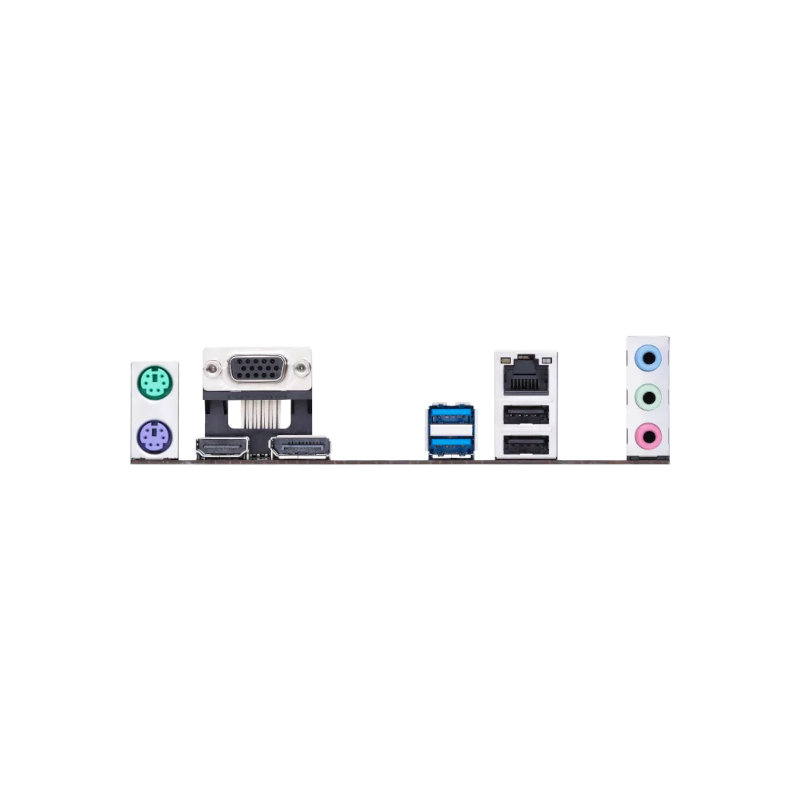

Rear I/O Ports

• 2 x USB 3.2 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x DisplayPort
• 1 x HDMI
• 1 x VGA
• 1 x LAN Port
• 3 x Audio Jacks
• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port

ASUS Features

Protection Features

• ASUS 5X Protection III
• DIGI+ VRM
• LANGuard
• SafeSlot Core
• Overvoltage Protection
• Stainless-Steel Back I/O

BIOS Features

• ASUS EZ Flash 3
• CrashFree BIOS 3
• UEFI BIOS EZ Mode

Software

• Armoury Crate
• AI Suite 3
• Fan Xpert 2+
• TurboV EVO
• ASUS CPU-Z

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Micro-ATX
• 24.4 cm × 21.1 cm

Warranty

• 3 Years

Major Improvements Over Basic H610M-K

Compared to simpler H610 boards, this model adds:

• Dual M.2 slots
• DisplayPort output
• Additional fan header
• Better software support
• RGB header
• Improved expansion flexibility

Best CPU Pairings

Recommended processors:

• Intel Core i5-14400
• Intel Core i5-14400F
• Intel Core i5-14600K (stock settings recommended)
• Intel Core i7-14700

Ideal Usage Scenarios

This motherboard is suitable for:

• Budget gaming PCs
• Mid-range productivity systems
• Office workstations
• Entry-level content creation
• Home PCs

Limitations

• No CPU overclocking support
• DDR4 only (no DDR5)
• Basic H610 VRM design
• Not ideal for sustained heavy i9 workloads
• No built-in Wi-Fi

Note*

• Price, feature, and specifications are subject to change without notice.
