PRO H610M-S DDR4

Description

MSI PRO H610M-G DDR4 Motherboard

The MSI PRO H610M-G DDR4 is a reliable Micro-ATX motherboard designed for Intel® 14th, 13th, and 12th Generation processors. Powered by the Intel® H610 chipset and LGA1700 socket, it delivers stable performance, essential connectivity, and excellent compatibility for home, office, business, and entry-level gaming PC builds.

Processor Support

Supports Intel® Core™ 14th Gen, 13th Gen, and 12th Gen processors, along with Intel® Pentium® Gold and Celeron® processors using the LGA1700 socket platform.

Chipset

Built with the Intel® H610 chipset, providing reliable performance and support for modern Intel desktop processors.

Memory Support

• 2 x DDR4 DIMM slots
• Supports up to 64GB maximum memory
• DDR4 memory support up to 3200MHz
• Supports Dual-Channel memory architecture
• Supports non-ECC, un-buffered memory

Supported memory speeds:

• DDR4 1866 MHz
• DDR4 2133 MHz
• DDR4 2400 MHz
• DDR4 2667 MHz
• DDR4 2800 MHz
• DDR4 2933 MHz
• DDR4 3000 MHz
• DDR4 3066 MHz
• DDR4 3200 MHz

Graphics Support

Integrated graphics support is available when using a processor with built-in graphics.

Display Output:

• 1 x HDMI™ Port
• HDMI™ 1.4 with HDR support
• Maximum resolution up to 4K (3840 x 2160) @ 30Hz

Expansion Slots

• 1 x PCIe 4.0 x16 Slot (From CPU)
• 1 x PCIe 3.0 x1 Slot (From Chipset)

Provides support for modern graphics cards and additional expansion devices.

Storage Support

• 1 x M.2 Slot
  • Supports PCIe 3.0 x4 SSDs
  • Supports 2242 / 2260 / 2280 form factor drives
• 2 x SATA 6Gb/s Ports

Ideal for high-speed NVMe SSDs and additional SATA storage devices.

USB Connectivity

Rear USB Ports:

• 2 x USB 3.2 Gen 1 Type-A (5Gbps)
• 4 x USB 2.0 Ports

Front USB Support:

• 2 x USB 3.2 Gen 1 Type-A Ports
• 4 x USB 2.0 Ports

Audio

Powered by the Realtek® ALC897 Audio Codec.

Features:

• 7.1 Channel High Definition Audio
• Clear and immersive sound quality
• Suitable for gaming, multimedia, and everyday computing

Networking

• Realtek® RTL8111H Gigabit LAN
• Stable and reliable wired internet connectivity
• Supports 10/100/1000 Mbps network speeds

Internal Connectors

• 1 x 24-Pin ATX Power Connector
• 1 x CPU Power Connector
• 1 x CPU Fan Header
• 1 x System Fan Header
• 2 x Front Panel Headers (JFP)
• 1 x Front Audio Header (JAUD)
• 1 x Chassis Intrusion Header (JCI)
• 1 x COM Port Header (JCOM)
• 1 x TPM 2.0 Header
• 4 x USB 2.0 Ports via Internal Headers

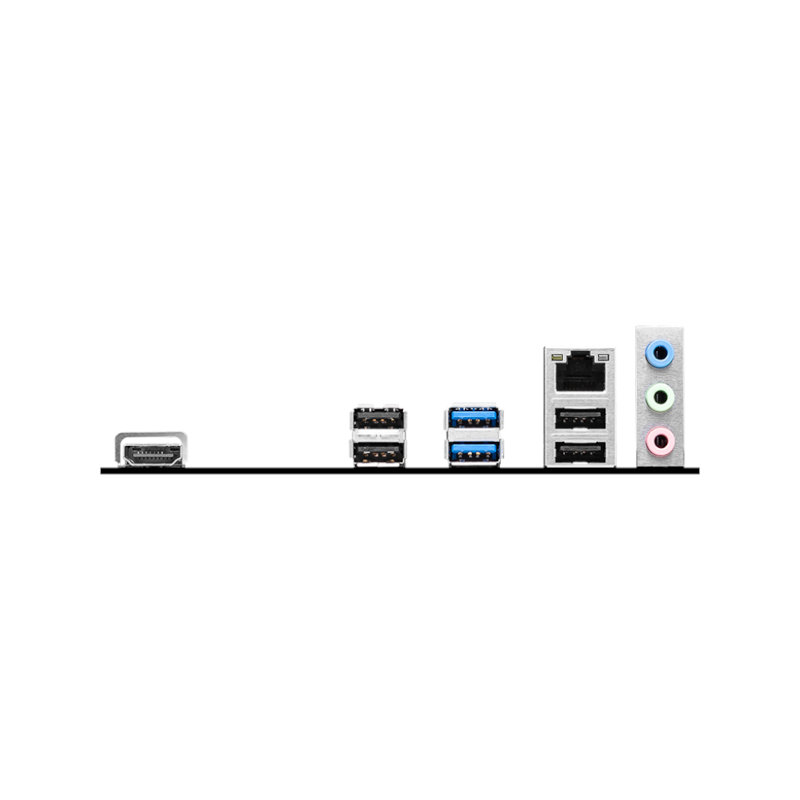

Rear I/O Ports

• 1 x HDMI™ Port
• 2 x USB 3.2 Gen 1 Type-A Ports
• 4 x USB 2.0 Ports
• 1 x Gigabit LAN Port
• Audio Connectors

EZ Debug LED Features

Equipped with:

• 4 x EZ Debug LEDs

These LEDs help quickly identify hardware installation and boot issues for easier troubleshooting.

Operating System Support

• Windows® 11 64-bit
• Windows® 10 64-bit

Form Factor

• Micro-ATX (mATX)
• Dimensions: 200mm × 236.16mm

Warranty

• 3 Years Manufacturer Warranty

Why Choose MSI PRO H610M-G DDR4?

The MSI PRO H610M-G DDR4 offers dependable performance, DDR4 memory support up to 64GB, PCIe 4.0 graphics support, high-speed M.2 storage, Gigabit LAN, and essential connectivity features. It is an excellent choice for budget gaming PCs, office systems, business workstations, and everyday computing builds based on Intel’s latest LGA1700 platform.
