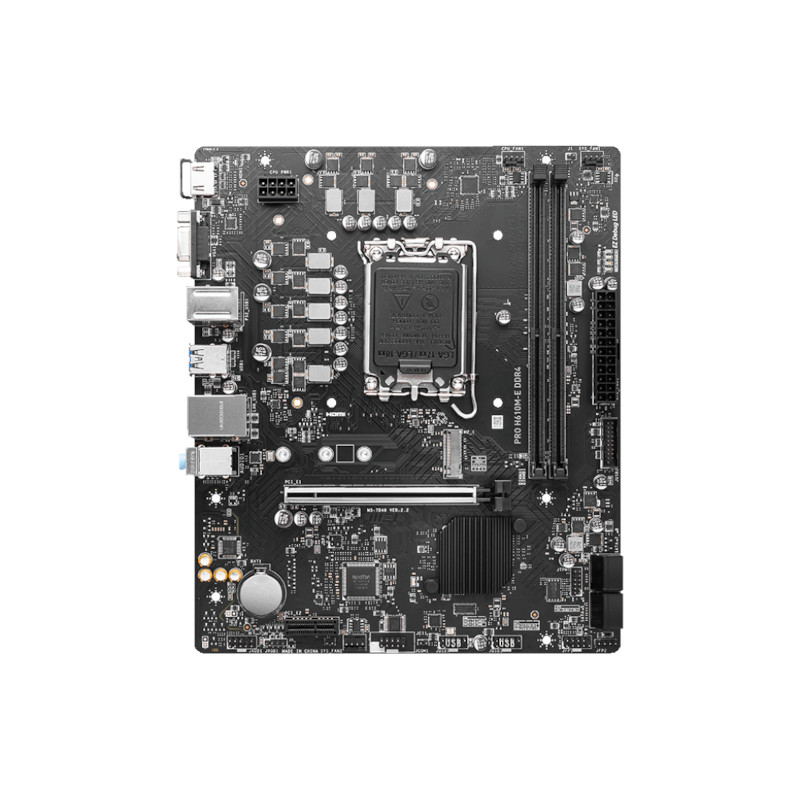

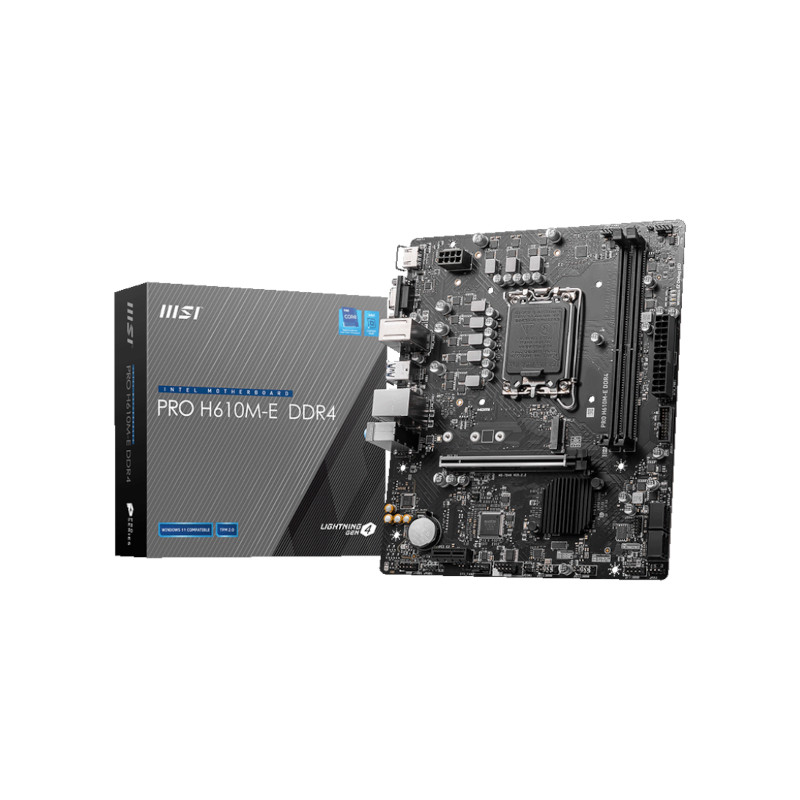

MSI PRO H610M-E DDR4 Motherboard

The MSI PRO H610M-E DDR4 is a dependable Micro-ATX motherboard designed for Intel® 14th, 13th, and 12th Generation Core™, Pentium® Gold, and Celeron® processors. Built on the Intel® H610 chipset and LGA1700 socket, it offers excellent stability, essential connectivity, and reliable performance for home, office, business, and entry-level gaming PCs.

Processor Support

Supports Intel® Core™ 14th Gen, 13th Gen, and 12th Gen processors along with Intel® Pentium® Gold and Celeron® CPUs. The LGA1700 socket ensures compatibility with the latest Intel desktop platforms, providing a future-ready foundation for your system.

Memory Support

Equipped with 2 DDR4 DIMM slots supporting up to 64GB of system memory in Dual-Channel mode. Supports DDR4 memory speeds up to 3200MHz and is compatible with non-ECC, unbuffered memory modules for stable and efficient multitasking performance.

Graphics & Display Connectivity

The motherboard includes HDMI™ and VGA display outputs for flexible monitor connectivity. HDMI™ supports resolutions up to 4K at 30Hz, while the VGA port supports resolutions up to 2048×1536. Display functionality is available when using processors with integrated graphics.

Expansion Slots

Features one PCIe 4.0 x16 slot directly connected to the CPU for modern graphics cards and one PCIe 3.0 x1 slot from the H610 chipset for additional expansion cards such as Wi-Fi adapters, sound cards, or capture cards.

Storage Options

Includes one M.2 slot supporting PCIe 3.0 x4 NVMe SSDs in 2242, 2260, and 2280 form factors for high-speed storage performance. Additionally, four SATA 6Gb/s ports allow connection of SSDs and hard drives for expanded storage capacity.

USB Connectivity

Offers multiple USB connectivity options including:

• 2 x USB 3.2 Gen 1 ports (Rear)
• 2 x USB 3.2 Gen 1 ports (Front via header)
• 4 x USB 2.0 ports (Rear)
• 4 x USB 2.0 ports (Front via headers)

This ensures convenient connectivity for peripherals, storage devices, and accessories.

Audio & Networking

Powered by the Realtek® ALC897 7.1 Channel High Definition Audio Codec, delivering clear and immersive sound quality. Integrated Realtek® RTL8111H Gigabit LAN controller provides stable and reliable wired network connectivity.

Internal Connectors

The motherboard includes:

• 24-pin ATX Power Connector
• 8-pin CPU Power Connector
• 1 x USB 3.2 Gen 1 Header
• 2 x USB 2.0 Headers
• 1 x CPU Fan Header
• 2 x System Fan Headers
• Front Panel Audio Header
• TPM Module Connector
• Serial Port Connector
• Chassis Intrusion Connector
• Clear CMOS Jumper

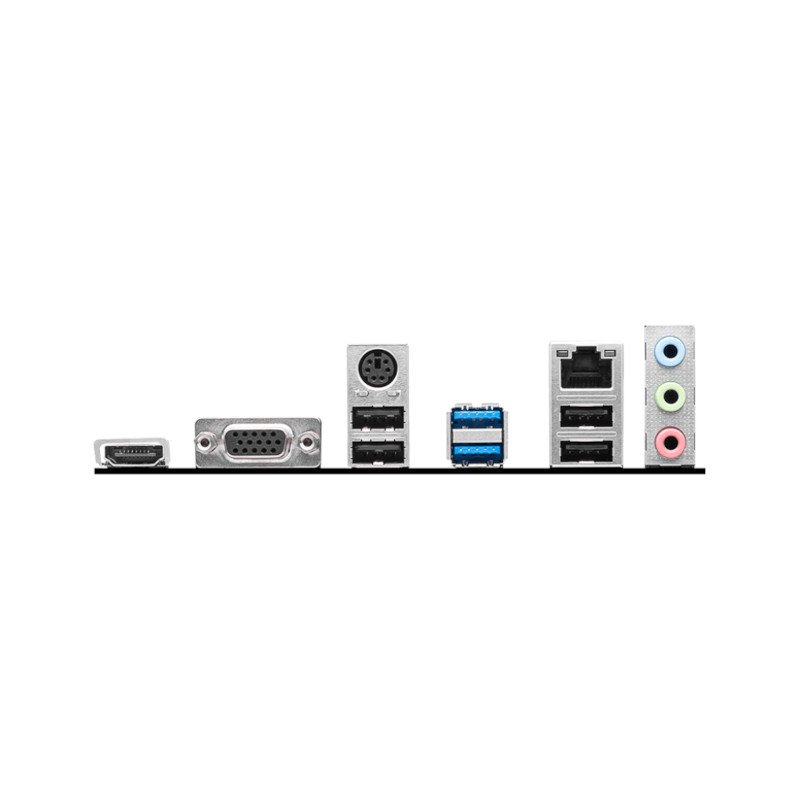

Rear I/O Ports

• 1 x HDMI™ Port
• 1 x VGA Port
• 2 x USB 3.2 Gen 1 Ports
• 4 x USB 2.0 Ports
• 1 x PS/2 Keyboard/Mouse Port
• 1 x Gigabit LAN Port
• 3 x Audio Jacks

RGB & Diagnostic Features

Features a 4-pin RGB LED header for lighting customization and 4 EZ Debug LEDs that help identify and troubleshoot hardware installation issues quickly.

Form Factor & Operating System

Built in a compact Micro-ATX form factor measuring 23.6cm x 20cm, making it suitable for a wide range of PC cases. Fully compatible with Windows® 11 64-bit and Windows® 10 64-bit operating systems.

Warranty

Backed by a 3-Year Manufacturer Warranty for long-term reliability and peace of mind.
