Description

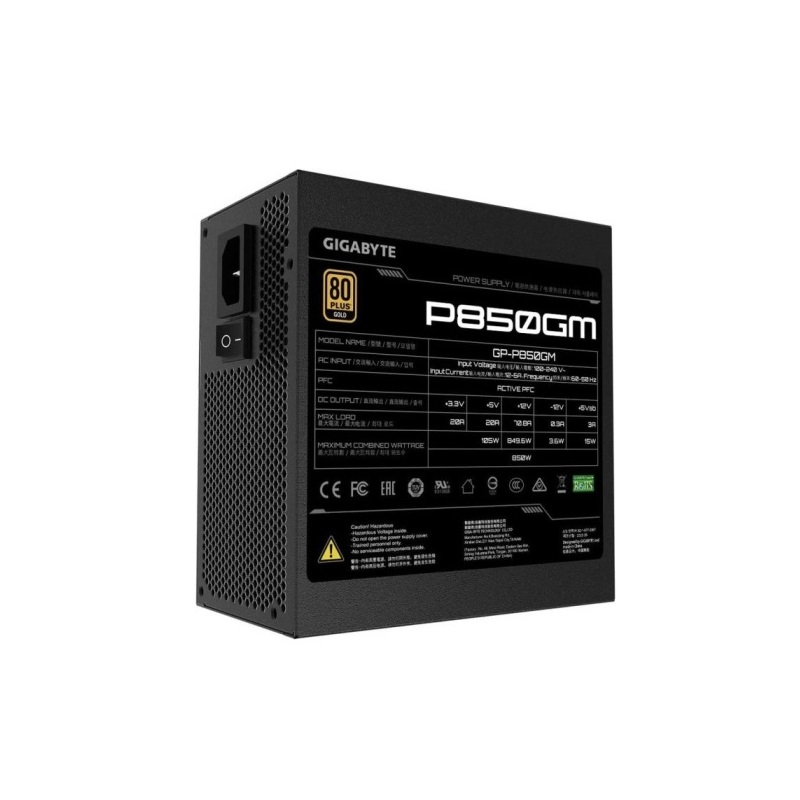

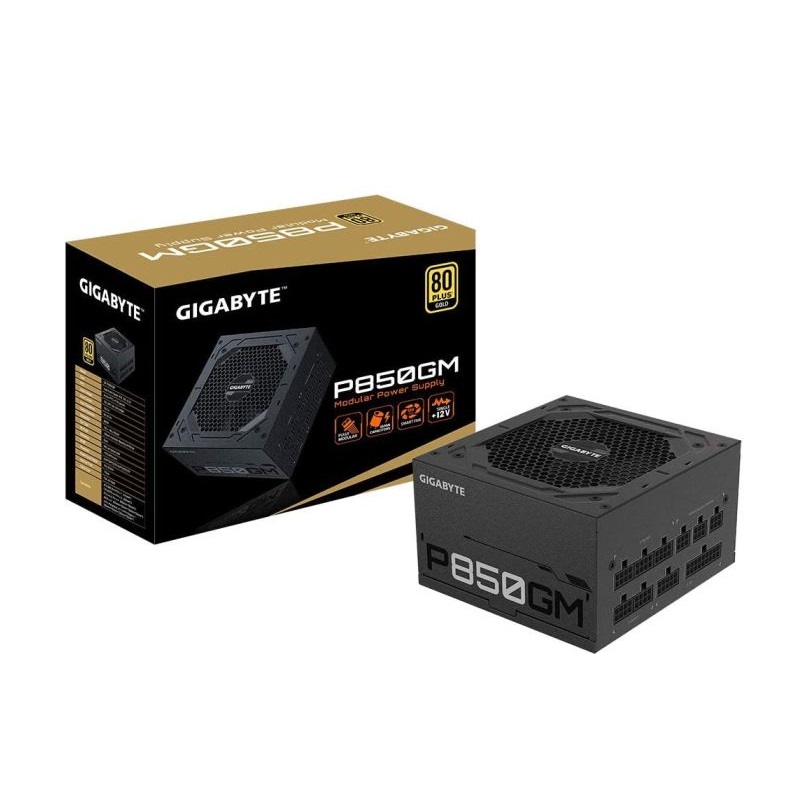

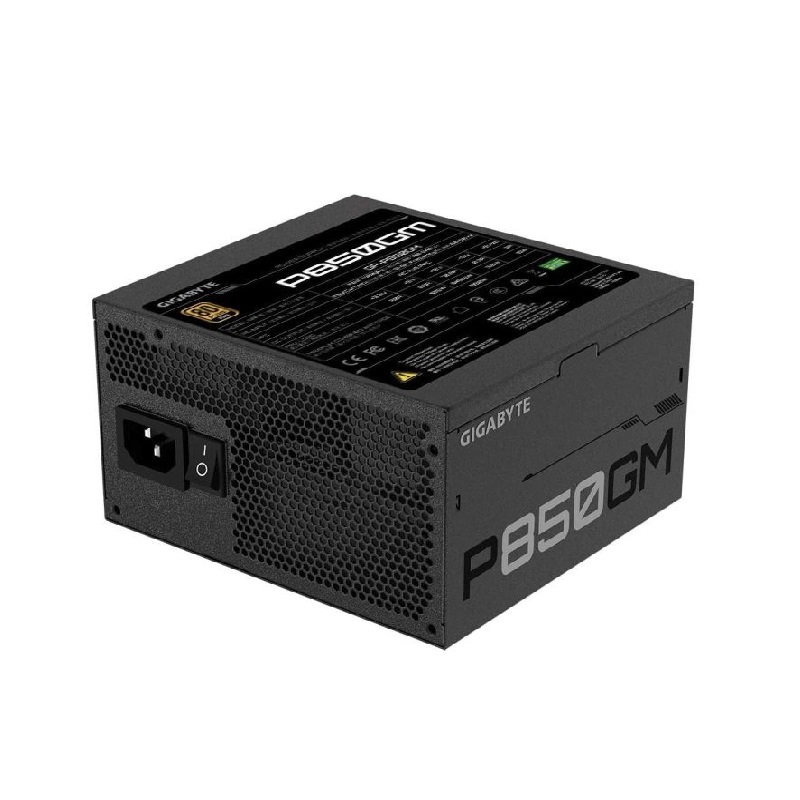

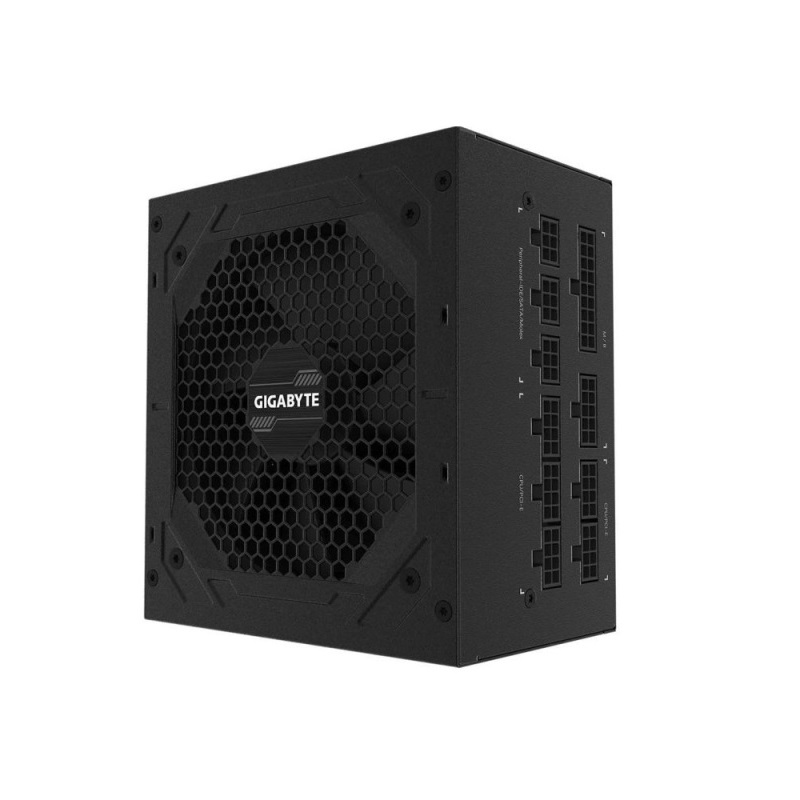

The Gigabyte P850GM is a high-performance 850W fully modular power supply designed for gaming PCs, creator workstations, and high-end desktop systems. Featuring 80 Plus Gold certification, Japanese capacitors, Active PFC, and a powerful single +12V rail, it delivers stable and efficient power for demanding hardware. The 120mm Smart Hydraulic Bearing fan ensures quiet cooling, while the fully modular design enables cleaner cable management and improved airflow. Backed by a 5-year warranty, the P850GM is built for reliable long-term performance.
| Specification | Details |
|---|---|
| Model | GP-P850GM |
| Brand | Gigabyte |
| Wattage | 850W |
| Certification | 80 Plus Gold |
| Form Factor | ATX 12V v2.31 |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100V – 240V |
| Input Current | 12A – 6A |
| Input Frequency | 50Hz – 60Hz |
| Fan Size | 120mm |
| Fan Type | Hydraulic Bearing (HYB) Fan |
| Efficiency | Up to 90% |
| MTBF | >100,000 Hours |
| Hold-Up Time | >16ms |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |

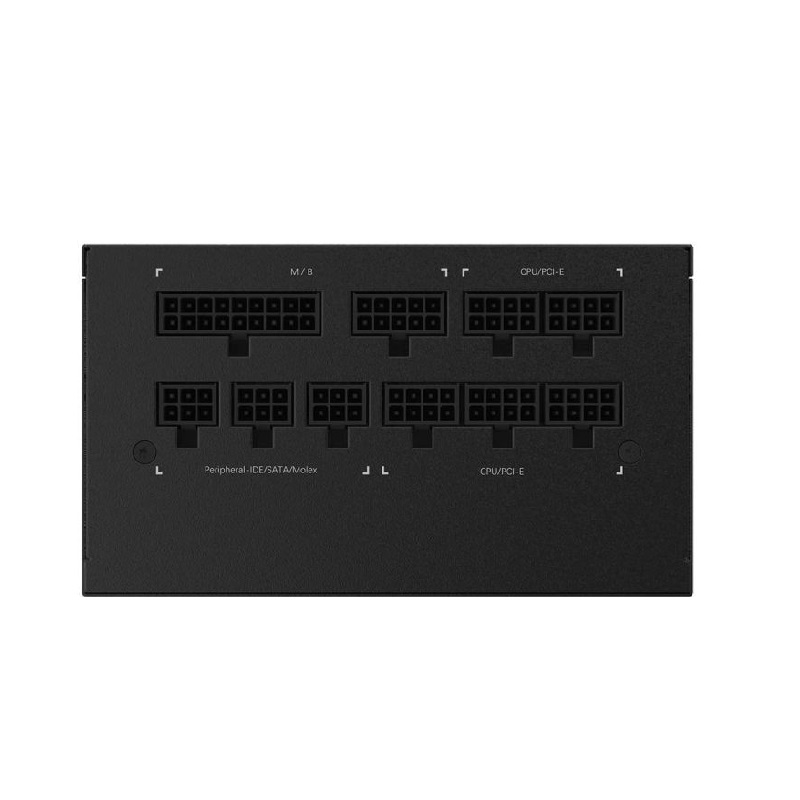

| ATX Connector | 20+4 Pin x1 |
| CPU/EPS Connector | 4+4 Pin x2 |
| PCIe Connector | 6+2 Pin x4 |
| SATA Connector | 8 |
| Peripheral Connector | 3 |
| Floppy Connector | 1 |
| Dimensions | 150 x 140 x 86 mm |
| Cable Type | Flat, All Black |
| Warranty | 5 Years |
