Description
The Gigabyte UD750GM is a reliable 750W fully modular power supply built for gaming PCs and high-performance desktop systems. Featuring 80 Plus Gold certification, premium Japanese capacitors, Active PFC, and a powerful single +12V rail, it delivers stable and efficient power output. The 120mm Smart Hydraulic Bearing fan ensures quiet cooling, while the fully modular design improves cable management and airflow. Backed by comprehensive protection features and a 5-year warranty, the UD750GM is designed for long-lasting performance.
| Specification | Details |
|---|---|
| Model | GP-UD750GM |
| Brand | Gigabyte |
| Series | Ultra Durable UD750GM |
| Wattage | 750W |
| Certification | 80 Plus Gold |
| Form Factor | ATX 12V v2.31 |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100V – 240V |
| Input Current | 12A – 6A |
| Input Frequency | 50Hz – 60Hz |
| Fan Size | 120mm |
| Fan Type | Hydraulic Bearing (HYB) Fan |
| Efficiency | Up to 90% |
| MTBF | >100,000 Hours |
| Hold-Up Time | >16ms |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |

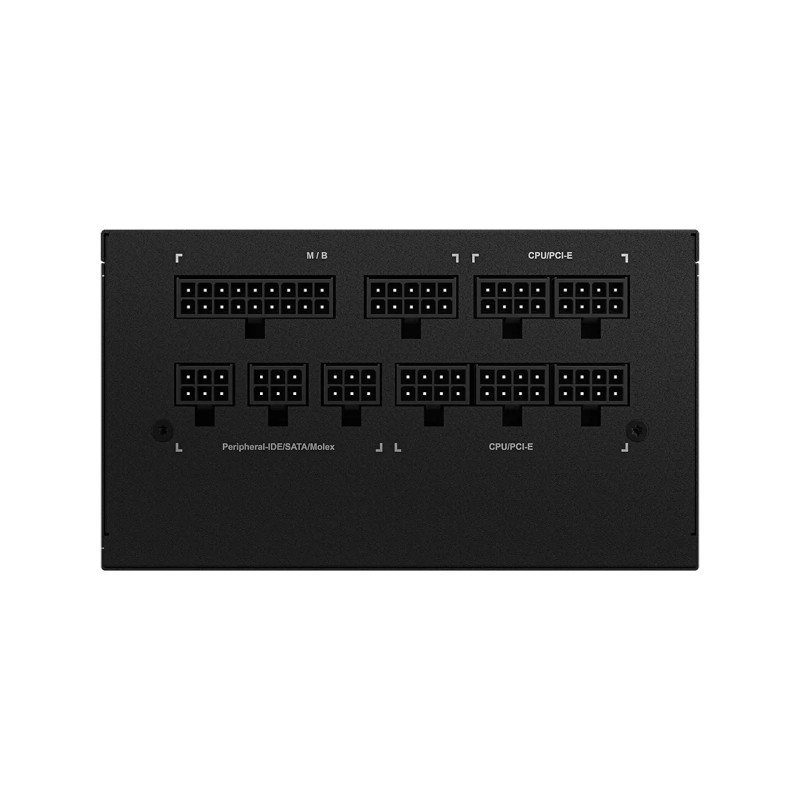

| ATX Connector | 20+4 Pin x1 |
| CPU/EPS Connector | 4+4 Pin x2 |
| PCIe Connector | 6+2 Pin x4 |
| SATA Connector | 8 |
| Peripheral Connector | 3 |
| Floppy Connector | 1 |
| Dimensions | 150 x 140 x 86 mm |
| Cable Type | Flat, All Black |
| Warranty | 5 Years |
