Description

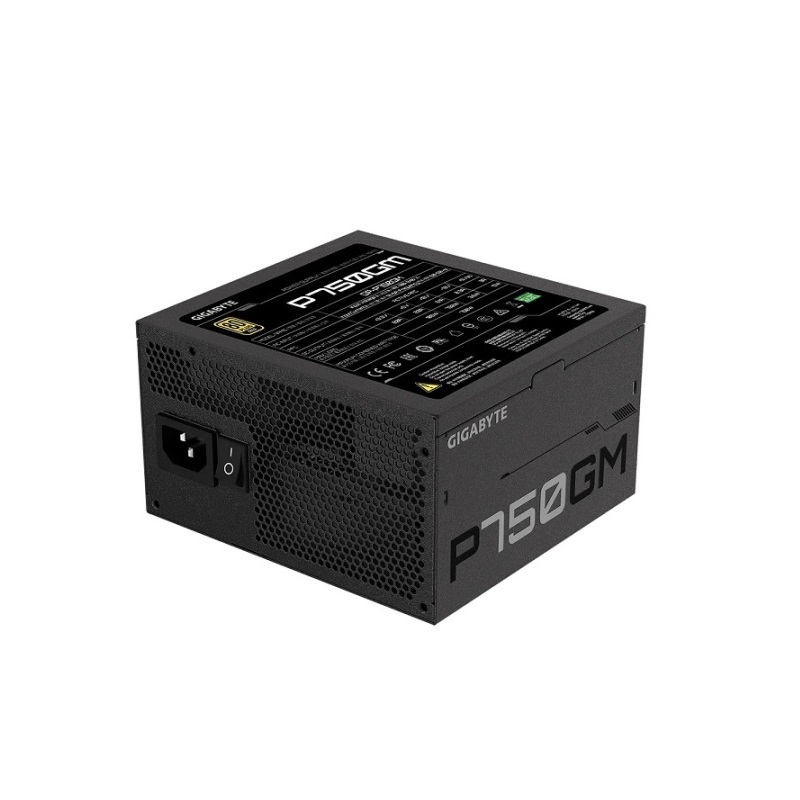

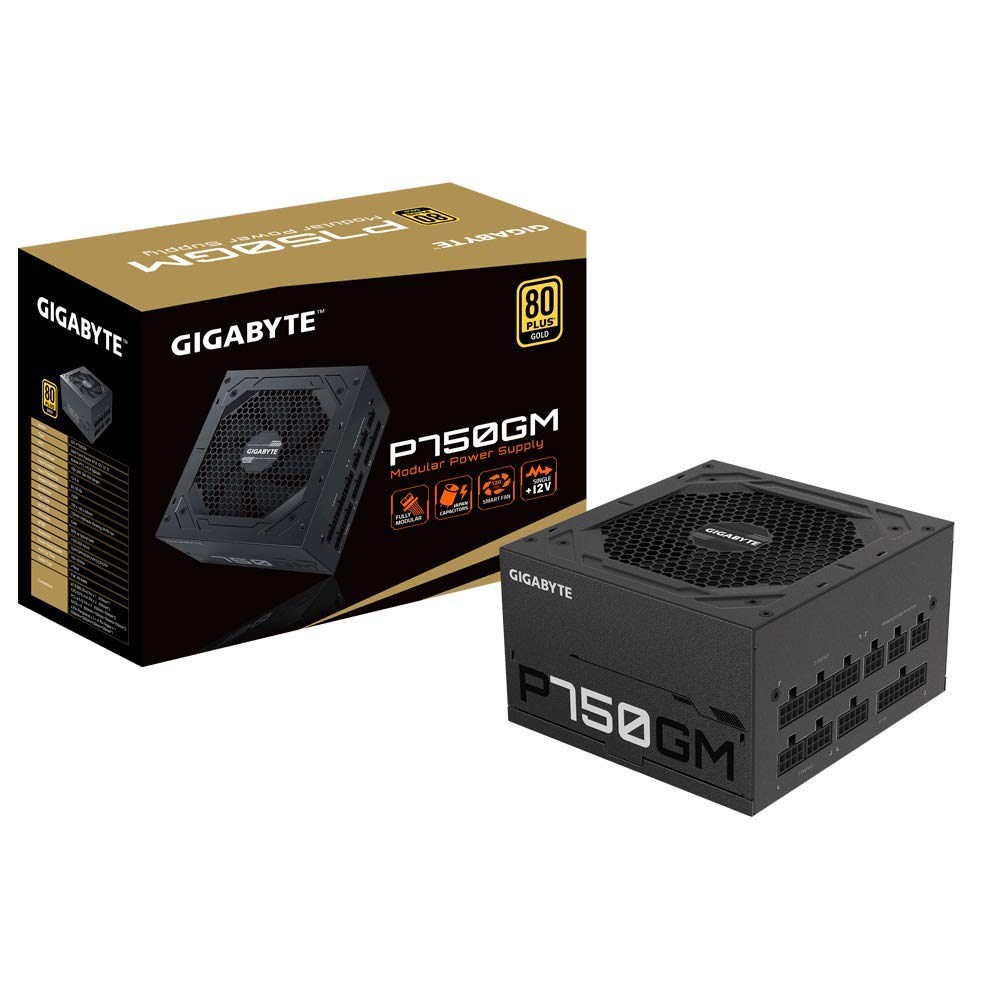

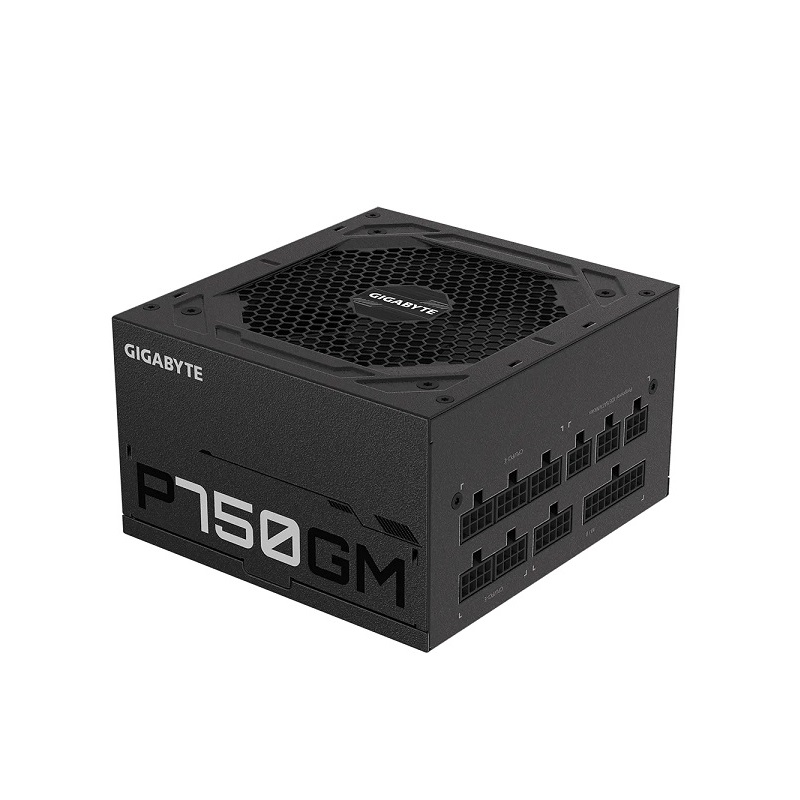

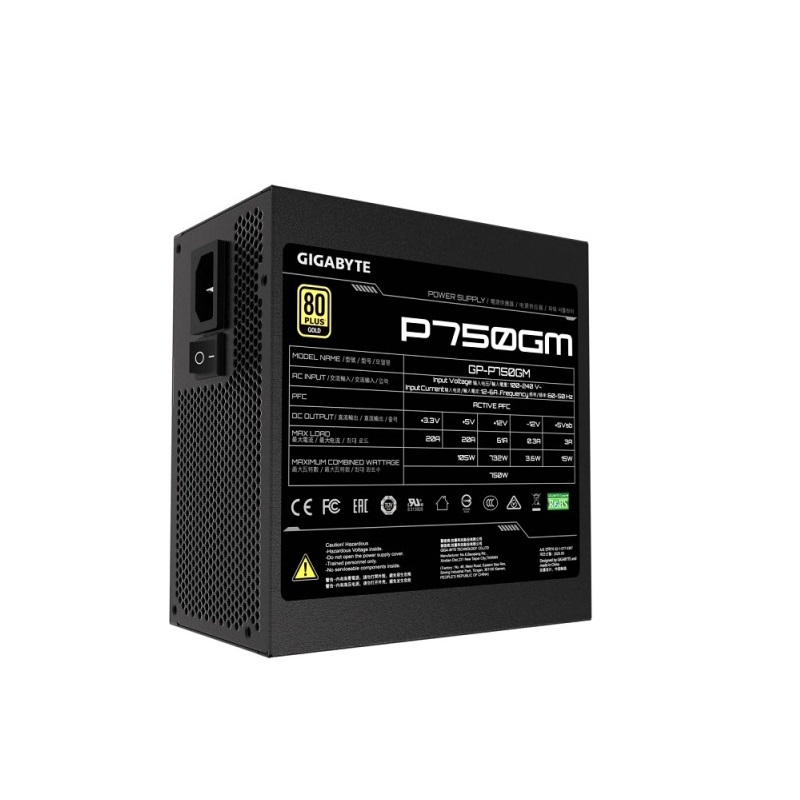

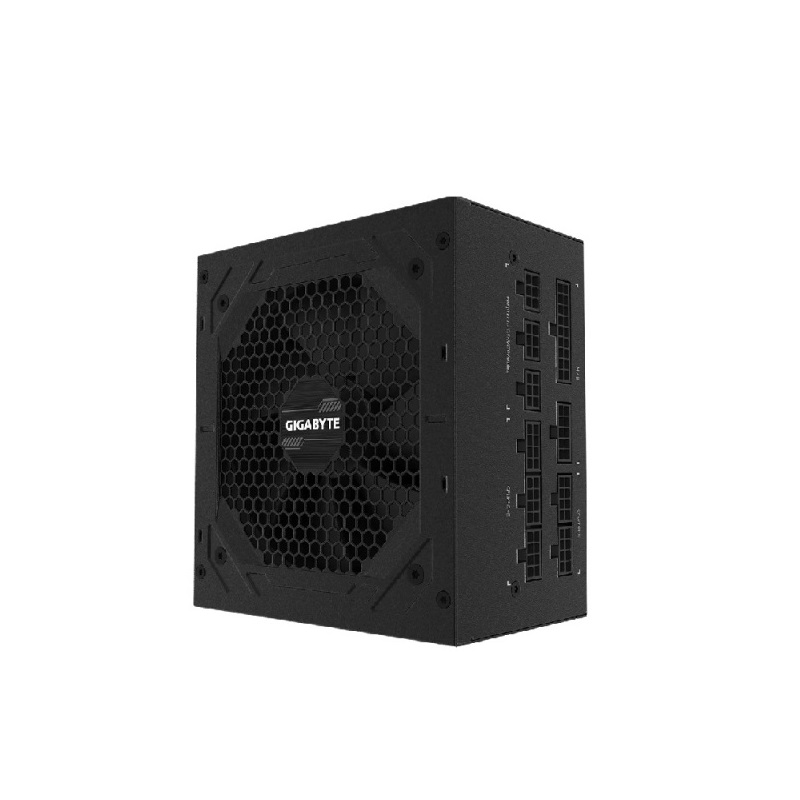

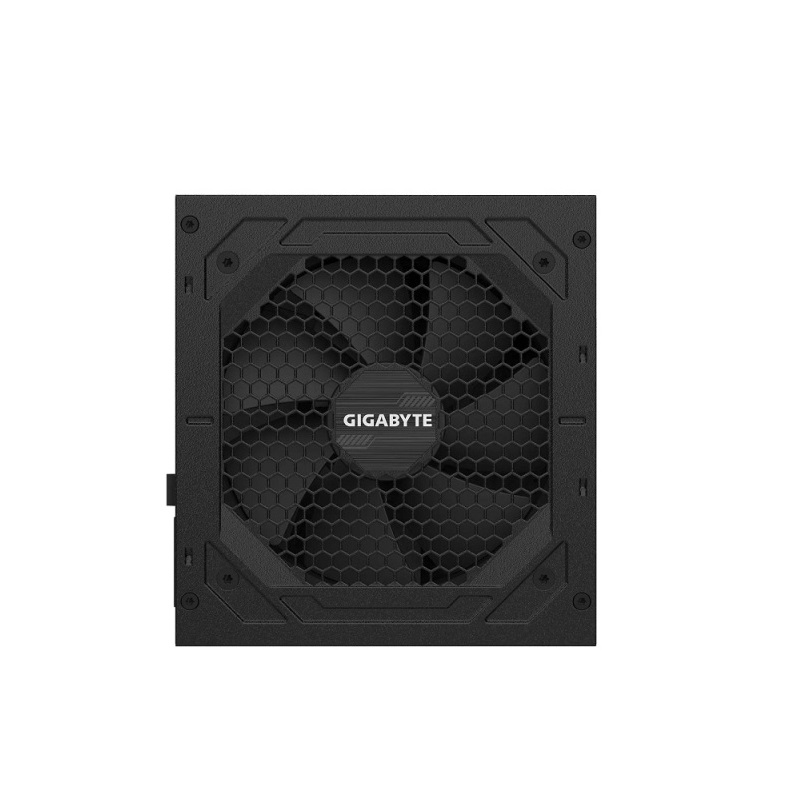

The Gigabyte P750GM is a high-efficiency 750W fully modular power supply designed for gaming PCs and performance desktop systems. Featuring 80 Plus Gold certification, Japanese capacitors, Active PFC, and a powerful single +12V rail, it delivers stable and efficient power for modern hardware. The 120mm Smart Hydraulic Bearing fan ensures quiet cooling, while the fully modular design enables clean cable management and improved airflow. Backed by a 5-year warranty, the P750GM offers reliable long-term performance.
| Specification | Details |
|---|---|
| Model | GP-P750GM |
| Brand | Gigabyte |
| Wattage | 750W |
| Certification | 80 Plus Gold |
| Form Factor | ATX 12V v2.31 |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Voltage | 100V – 240V |
| Input Current | 12A – 6A |
| Input Frequency | 50Hz – 60Hz |
| Fan Size | 120mm |
| Fan Type | Hydraulic Bearing (HYB) Fan |
| Efficiency | Up to 90% |
| MTBF | >100,000 Hours |
| Hold-Up Time | >16ms |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| ATX Connector | 20+4 Pin x1 |
| CPU/EPS Connector | 4+4 Pin x2 |
| PCIe Connector | 6+2 Pin x4 |
| SATA Connector | 8 |
| Peripheral Connector | 3 |
| Floppy Connector | 1 |
| Dimensions | 150 x 140 x 86 mm |
| Warranty | 5 Years |
