Description

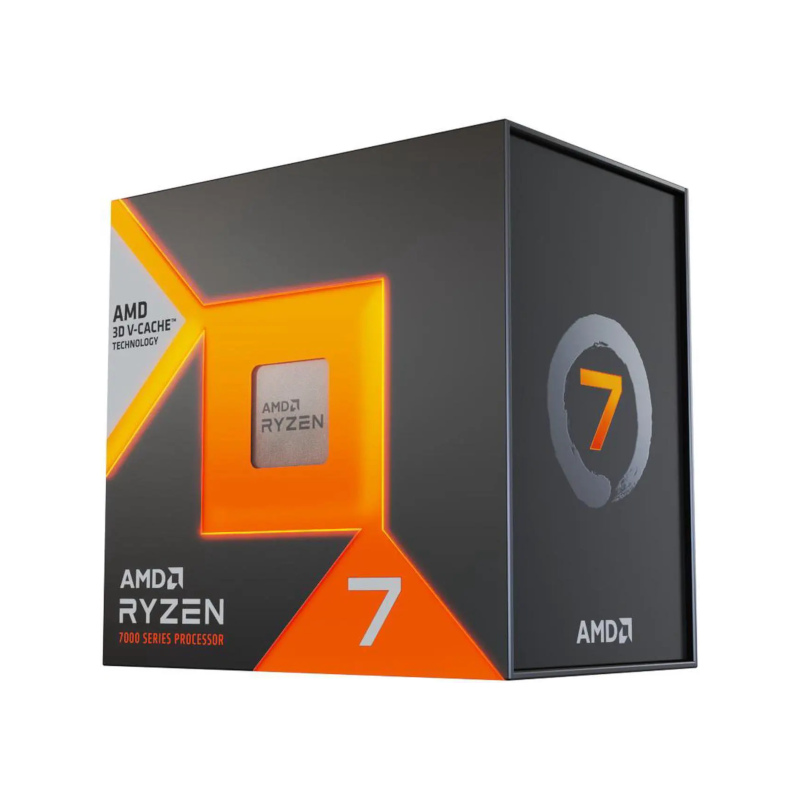

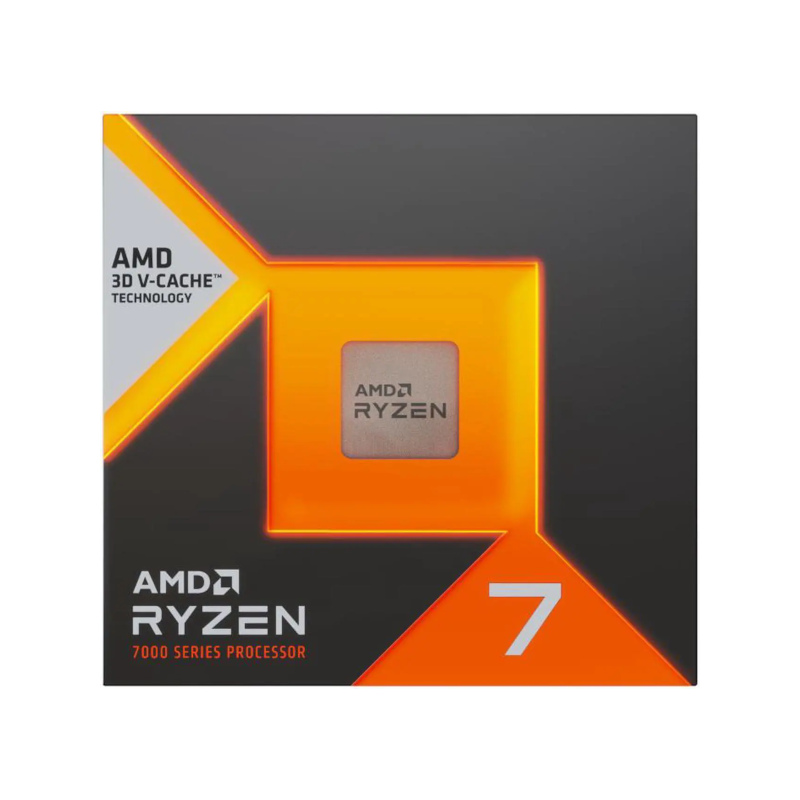

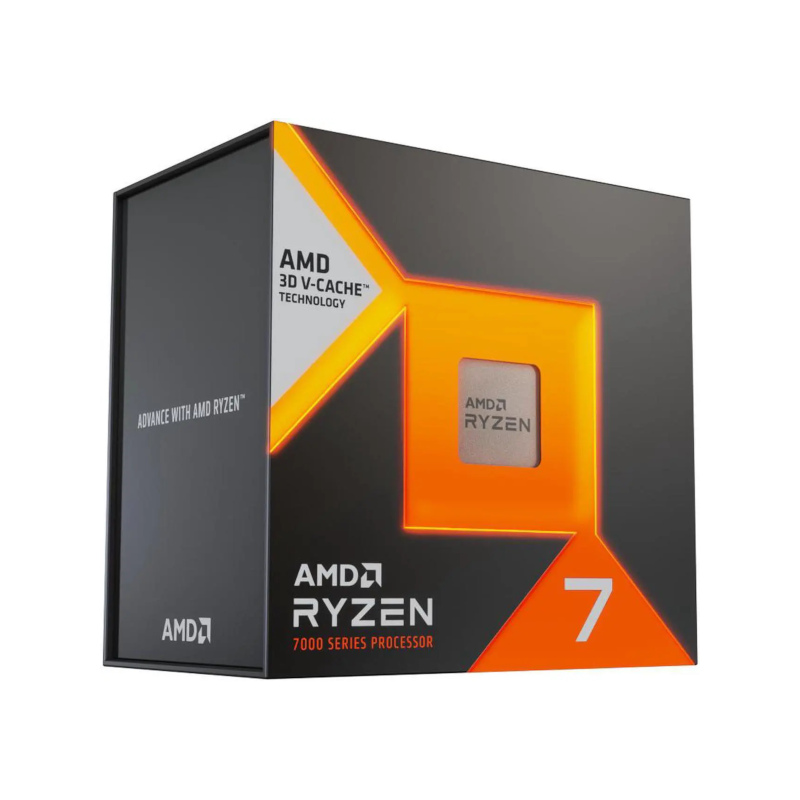

What is AMD Ryzen™ 7 7800X3D?

The AMD Ryzen™ 7 7800X3D is a premium 8-core desktop processor built on AMD’s Zen 4 architecture and enhanced with groundbreaking 3D V-Cache™ technology. Designed specifically for gamers and performance enthusiasts, it delivers exceptional gaming performance, lower latency, integrated Radeon graphics, DDR5 memory support, and PCIe® 5.0 connectivity.

Key Specifications

The AMD Ryzen™ 7 7800X3D includes the following specifications:

Architecture: Zen 4
CPU Cores: 8
Threads: 16
Base Clock: Variable (Officially determined by AMD)
Max Boost Clock: Up to 5.0 GHz
L1 Cache: 512 KB
L2 Cache: 8 MB
L3 Cache: 96 MB (with AMD 3D V-Cache™)
Default TDP: 125W
Manufacturing Process: TSMC 5nm FinFET
Socket: AM5
Overclocking Support: Yes (Unlocked)
Precision Boost Overdrive: Yes
AMD EXPO™ Support: Yes
Integrated Graphics: AMD Radeon™ Graphics
Graphics Core Count: 2
Maximum Operating Temperature: 89°C

Operating System Support

The processor officially supports:

• Windows 11 (64-bit)
• Windows 10 (64-bit)
• Ubuntu x86 64-bit
• RHEL x86 64-bit

Operating system support may vary depending on motherboard manufacturer.

Connectivity Features

PCI Express Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28 / 24
USB Type-C® Support: Yes
USB 3.2 Gen 2 (10Gbps) Ports: 4
USB 3.2 Gen 1 (5Gbps) Ports: 0
USB 2.0 Ports: 1
Native SATA Ports: 0
NVMe Support: Boot, RAID 0, RAID 1, RAID 10
Memory Type: DDR5
Maximum Memory Capacity: 128 GB
ECC Memory Support: Yes (Motherboard dependent)

Supported Chipsets

• X670E
• X670
• B650E
• B650

Memory Support

Official supported memory speeds:

• 1 DIMM per channel (Single Rank): DDR5-5200
• 1 DIMM per channel (Dual Rank): DDR5-5200
• 2 DIMMs per channel (Single Rank): DDR5-3600
• 2 DIMMs per channel (Dual Rank): DDR5-3600

Graphics Capabilities

The Ryzen™ 7 7800X3D includes built-in AMD Radeon™ Graphics, allowing display output without requiring a dedicated graphics card.

Graphics Frequency: 2200 MHz
GPU Base Clock: 400 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

• AMD 3D V-Cache™ Technology
• AMD EXPO™ Memory Overclocking Technology
• AMD Ryzen™ Technologies
• Precision Boost 2
• AMD Ryzen™ Master Support
• Curve Optimizer Voltage Offsets
• Unlocked for Overclocking

Warranty & Important Note

Warranty: 3 Years

*Prices, features, and specifications are subject to change without prior notice.
