Description

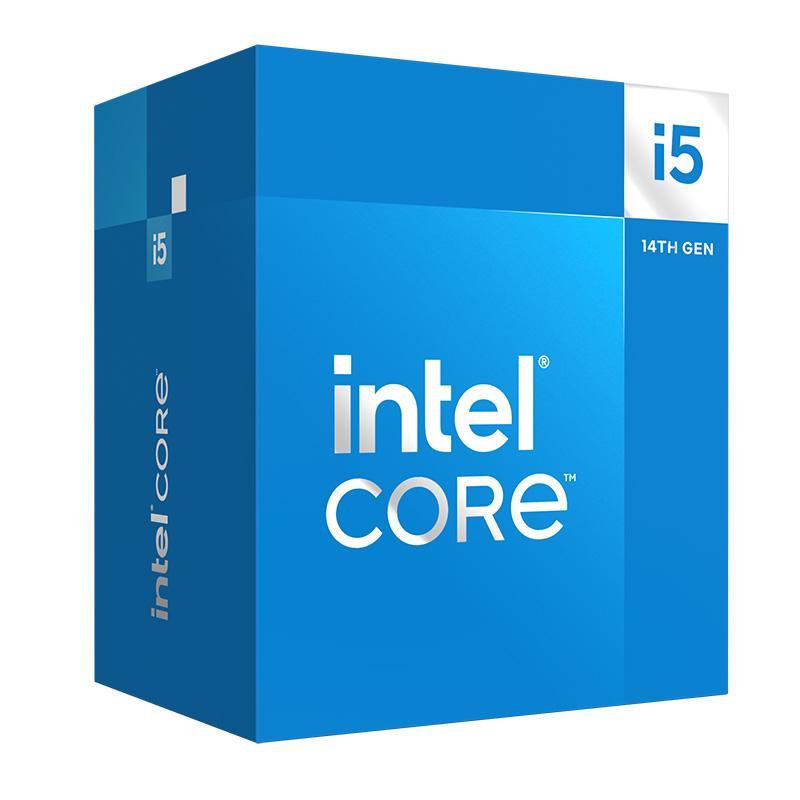

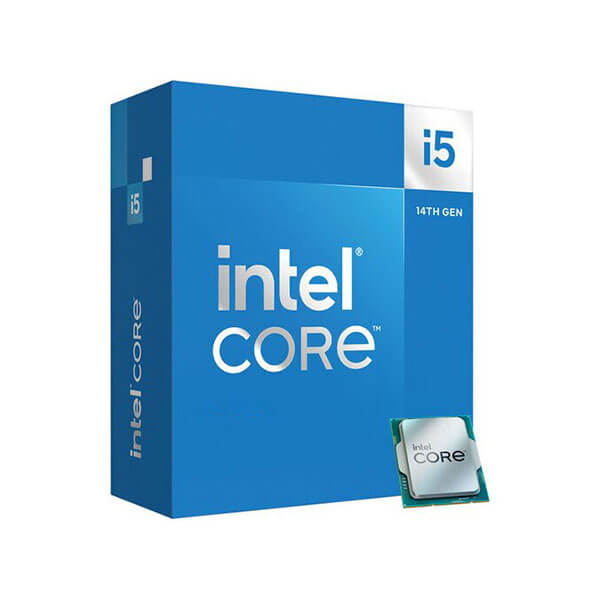

What is Intel® Core™ i5-14400?

The Intel® Core™ i5-14400 is a powerful 14th Gen desktop processor based on Intel’s Raptor Lake architecture. Designed for gamers, everyday users, and content creators, it combines Performance-cores and Efficient-cores to deliver excellent multitasking performance, integrated Intel UHD Graphics 730, and support for both DDR4 and DDR5 memory.

Key Specifications

The Intel® Core™ i5-14400 includes the following specifications:

Architecture: Raptor Lake Refresh
Manufacturing Process: Intel 7
Total Cores: 10
Performance Cores: 6
Efficient Cores: 4
Threads: 16
Performance-core Base Clock: 2.5 GHz
Performance-core Max Turbo Clock: Up to 4.7 GHz
Efficient-core Base Clock: 1.8 GHz
Efficient-core Max Turbo Clock: Up to 3.5 GHz
Intel Smart Cache: 20 MB
L2 Cache: 9.5 MB
Processor Base Power: 65W
Maximum Turbo Power: 148W
Socket: FCLGA1700
Maximum Operating Temperature (TJunction): 100°C

Operating System Support

The Intel® Core™ i5-14400 supports modern 64-bit operating systems including:

• Windows 11 (64-bit)
• Windows 10 (64-bit)
• Linux distributions such as Ubuntu and other x86 64-bit systems

Operating system compatibility may vary depending on motherboard and chipset support.

Connectivity Features

PCI Express Support: PCIe® 5.0 and PCIe® 4.0
Maximum PCIe Lanes: 20
PCIe Configurations: Up to 1×16+4 or 2×8+4
DMI Revision: 4.0
Maximum DMI Lanes: 8
Memory Support: DDR5-4800 or DDR4-3200
Memory Channels: Dual Channel
Maximum Memory Capacity: 192 GB
Maximum Memory Bandwidth: 76.8 GB/s

Graphics Capabilities

The Intel® Core™ i5-14400 includes integrated Intel® UHD Graphics 730, allowing display output without requiring a dedicated graphics card.

Graphics Max Dynamic Frequency: 1.55 GHz
Execution Units: 24
Maximum Displays Supported: 4
HDMI Maximum Resolution: 4096 × 2160 @ 60Hz
DisplayPort Maximum Resolution: 7680 × 4320 @ 60Hz
eDP Maximum Resolution: 5120 × 3200 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3.0
Intel® Quick Sync Video: Yes

Advanced Technologies

• Intel® Thread Director
• Intel® Turbo Boost Technology 2.0
• Intel® Hyper-Threading Technology
• Intel® Gaussian & Neural Accelerator 3.0
• Intel® Deep Learning Boost (DL Boost)
• Intel® Speed Shift Technology
• Intel® Volume Management Device (VMD)

Security Features

• Intel® AES New Instructions
• Intel® Control-Flow Enforcement Technology
• Intel® Secure Key
• Intel® OS Guard
• Intel® Boot Guard
• Execute Disable Bit
• Intel® Virtualization Technology (VT-x)
• Intel® Virtualization Technology for Directed I/O (VT-d)
• Intel® VT-x with Extended Page Tables (EPT)

Warranty & Important Note

Warranty: 3 Years

*Prices, features, and specifications are subject to change without prior notice.
