Description

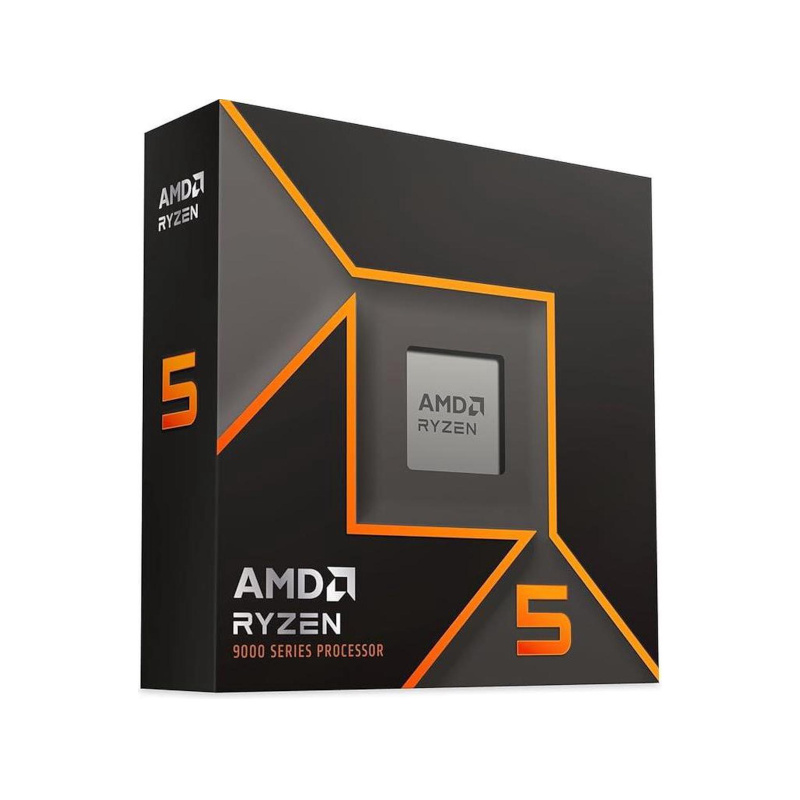

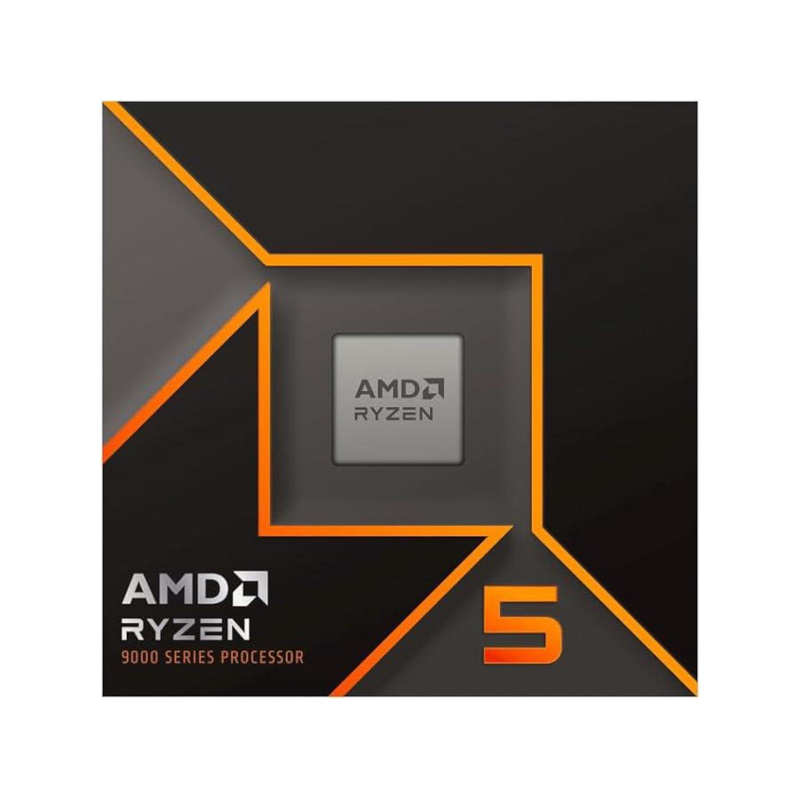

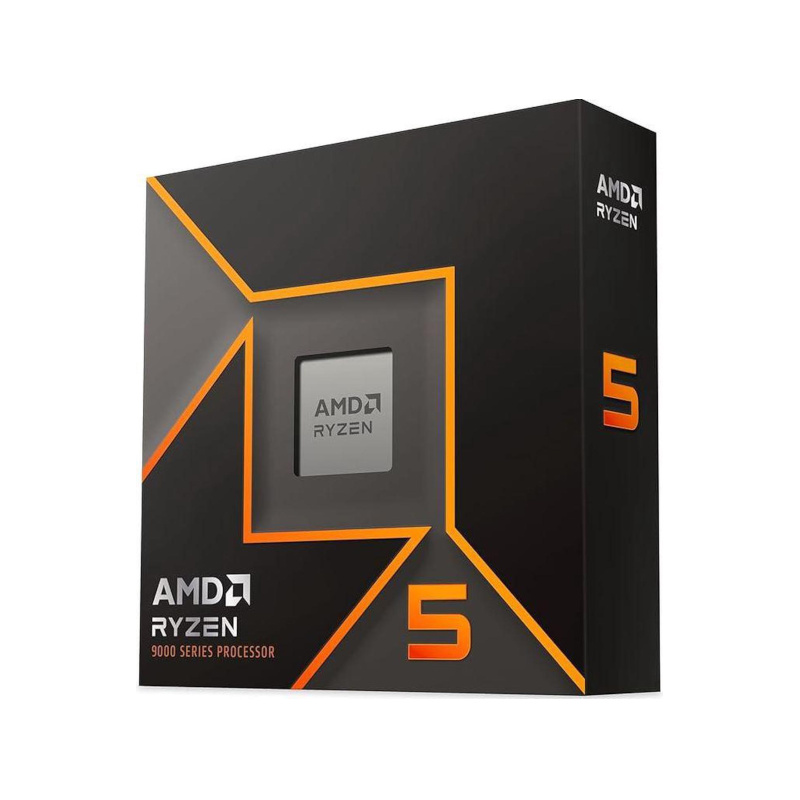

What is AMD Ryzen™ 5 9600X?

The AMD Ryzen™ 5 9600X is a next-generation high-performance desktop processor built on AMD’s advanced Zen 5 architecture for the AM5 platform. Designed for gamers, content creators, and enthusiast PC users, it delivers excellent single-core and multi-core performance, integrated Radeon graphics, DDR5 memory support, and PCIe® 5.0 connectivity.

Key Specifications

The AMD Ryzen™ 5 9600X includes the following specifications:

Architecture: Zen 5
CPU Cores: 6
Threads: 12
Base Clock: 3.9 GHz
Max Boost Clock: Up to 5.4 GHz
L1 Cache: 480 KB
L2 Cache: 6 MB
L3 Cache: 32 MB
Default TDP: 65W
Manufacturing Process: TSMC 4nm FinFET
Socket: AM5
Overclocking Support: Yes (Unlocked)
Precision Boost Overdrive: Yes
AMD EXPO™ Support: Yes
Integrated Graphics: AMD Radeon™ Graphics
Graphics Core Count: 2
Recommended Cooler: Premium air cooler recommended
Thermal Solution Included: No

Operating System Support

The processor officially supports:

• Windows 11 (64-bit)
• Windows 10 (64-bit)
• Ubuntu x86 64-bit
• RHEL x86 64-bit

Operating system support may vary depending on motherboard manufacturer.

Connectivity Features

PCI Express Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28 / 24
USB 3.2 Gen 2 (10Gbps) Ports: 4
USB 2.0 Ports: 1
NVMe Support: Boot, RAID 0, RAID 1, RAID 5, RAID 10
Memory Type: DDR5
Memory Channels: Dual Channel
Maximum Memory Capacity: 192 GB
ECC Memory Support: Yes (Motherboard dependent)

Supported Chipsets

• A620
• B650
• B650E
• X670
• X670E
• X870
• X870E

Memory Support

Official supported memory speeds:

• 2 DIMMs (Single Rank): DDR5-5600
• 2 DIMMs (Dual Rank): DDR5-5600
• 4 DIMMs (Single Rank): DDR5-3600
• 4 DIMMs (Dual Rank): DDR5-3600

Graphics Capabilities

The Ryzen™ 5 9600X includes built-in AMD Radeon™ Graphics, allowing display output without requiring a dedicated graphics card.

Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

• AMD EXPO™ Memory Overclocking Technology
• AMD Ryzen™ Technologies
• Precision Boost 2
• AMD Ryzen™ Master Support
• Curve Optimizer Voltage Offsets
• Unlocked for Overclocking

Warranty & Important Note

Warranty: 3 Years

*Prices, features, and specifications are subject to change without prior notice.
