Description
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Graphics Port | 1x HDMI,1x DisplayPort,1x Type-C DisplayPort |

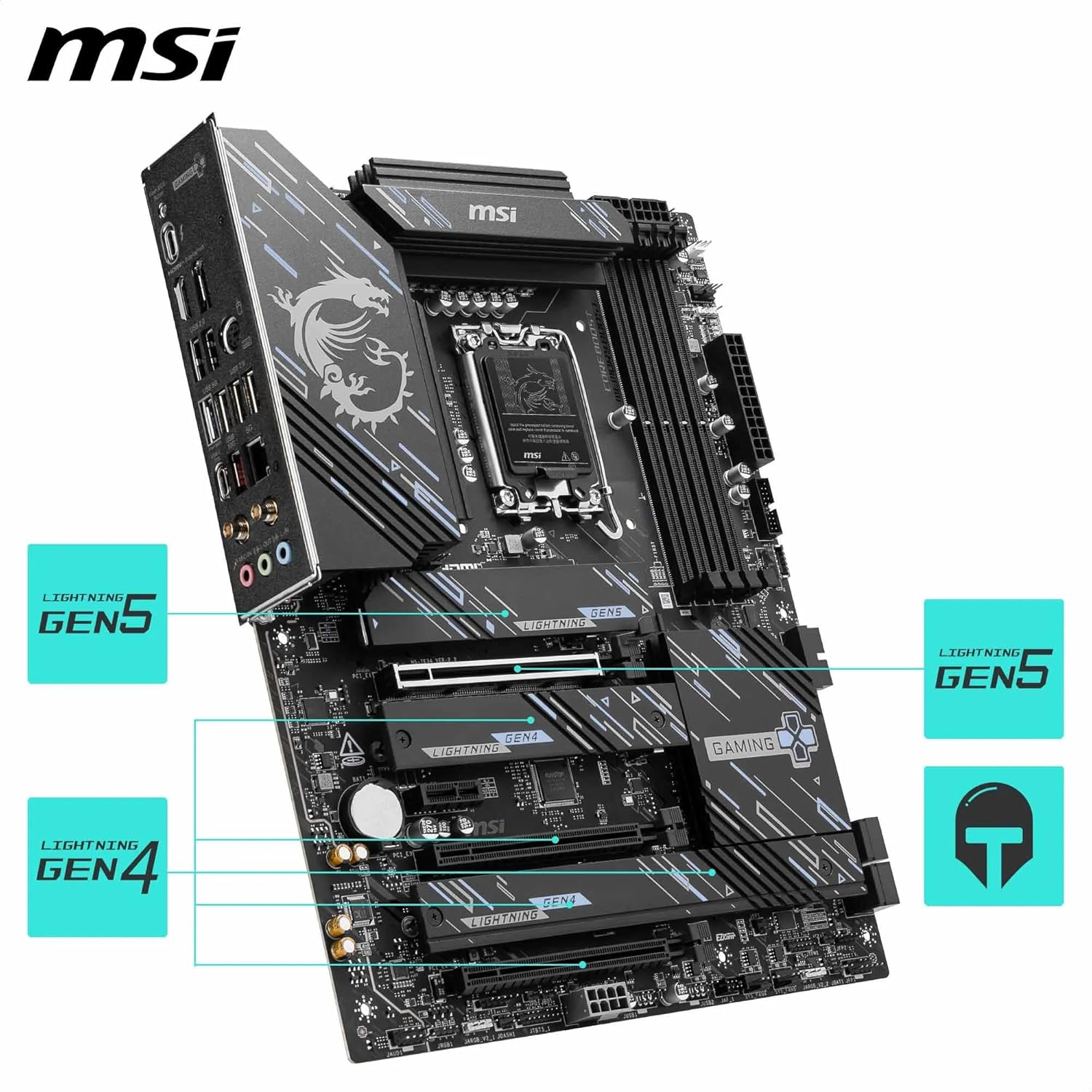

| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Wireless Networking | Wi-Fi 7,Bluetooth 5.4 |

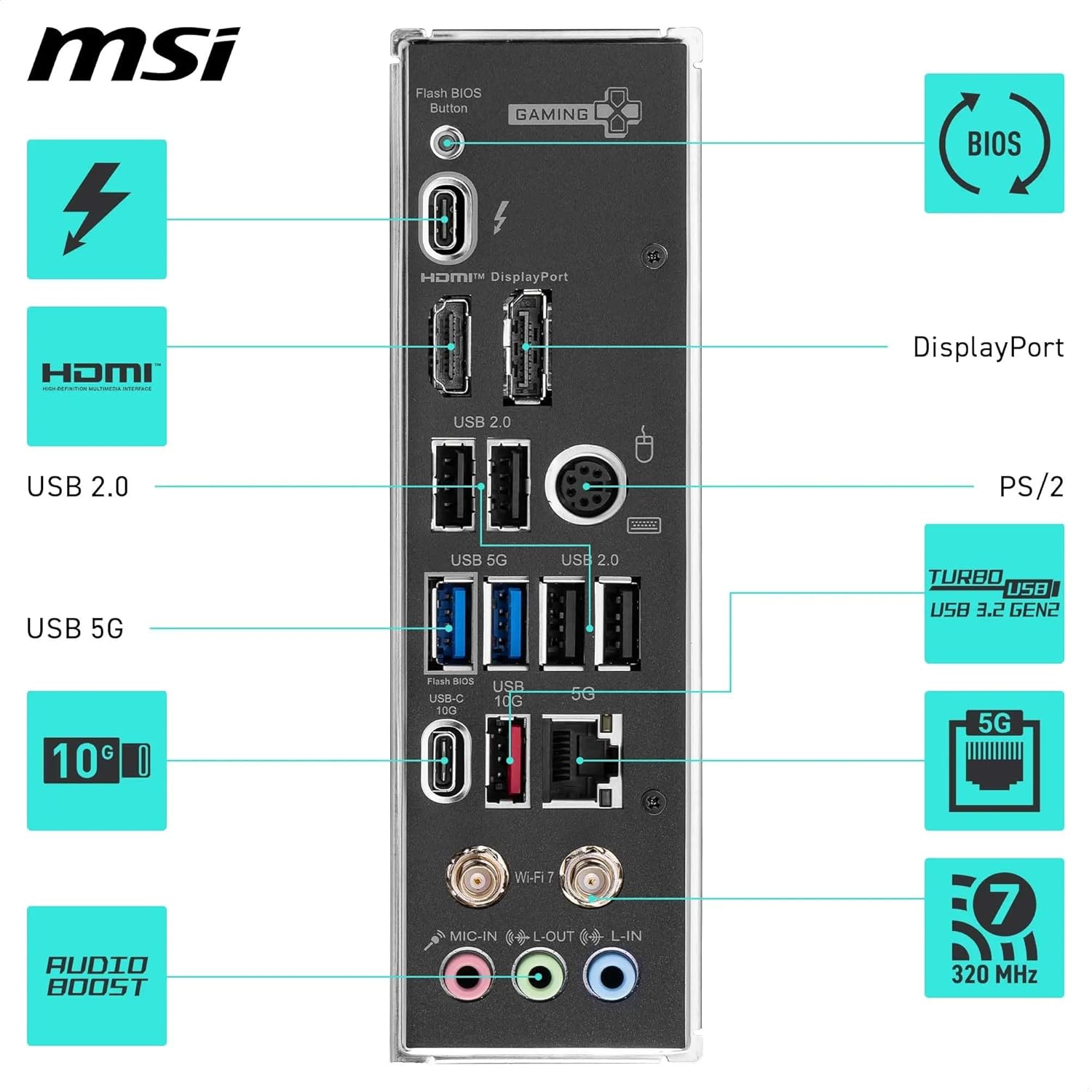

| Back Panel I/O Ports | DisplayPort Keyboard / Mouse USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 5Gbps Type A ports USB 10 Gbps Type C ports USB 10 Gbps Type A ports |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
