Description
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 7000,8000,9000 |
| Chipset | B840 |

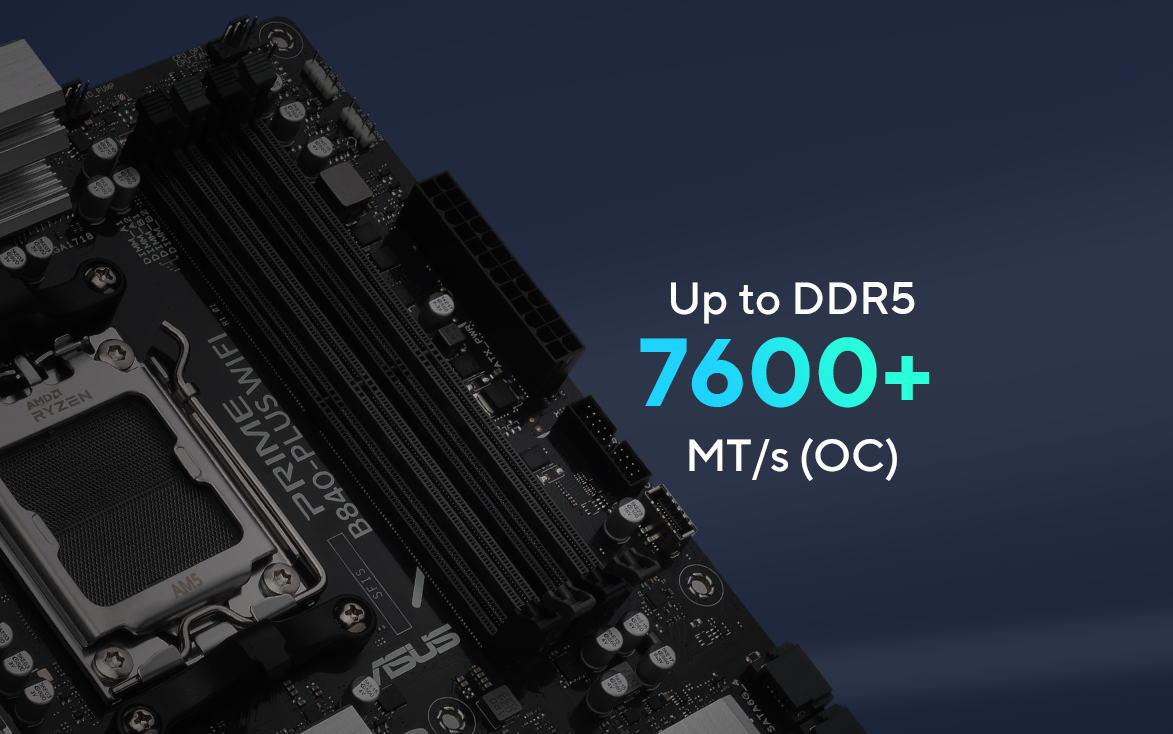

| Memory Speed | up to 7600+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information visit on Brand Site. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics Port | 1 x DisplayPort,1 x HDMI |

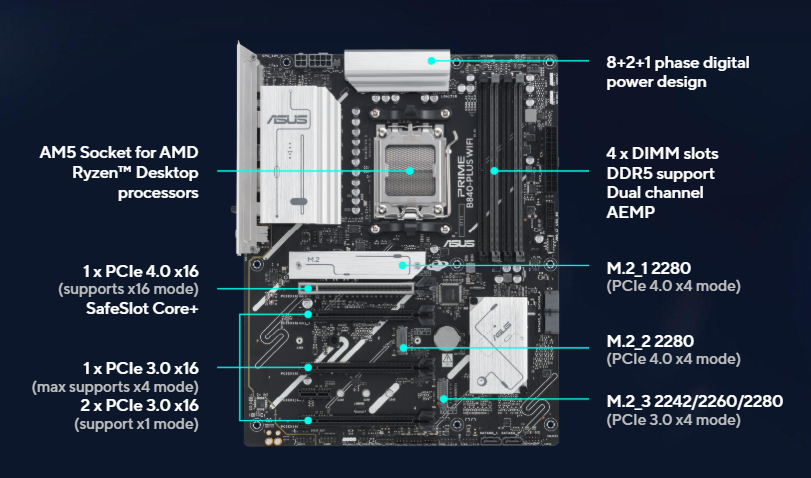

| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B840 Chipset 1 x PCIe 3.0 x16 slot (support x4 mode)*** 2 x PCIe 3.0 x16 slots (support x1 mode)*** 1 x PCIe 3.0 x1 slot*** * Please check the PCIe bifurcation table on the support site. ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/3 and PCIEX1(G3) share bandwidth with PCIEX16(G3)_2. The PCIEX16(G3)_2 will run x1 mode when any of the PCIEX16(G3)_1/3 and PCIEX1(G3) slots is occupied. |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

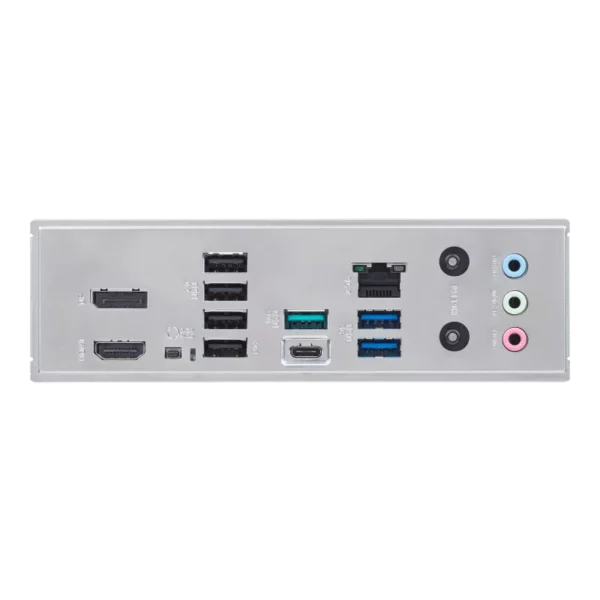

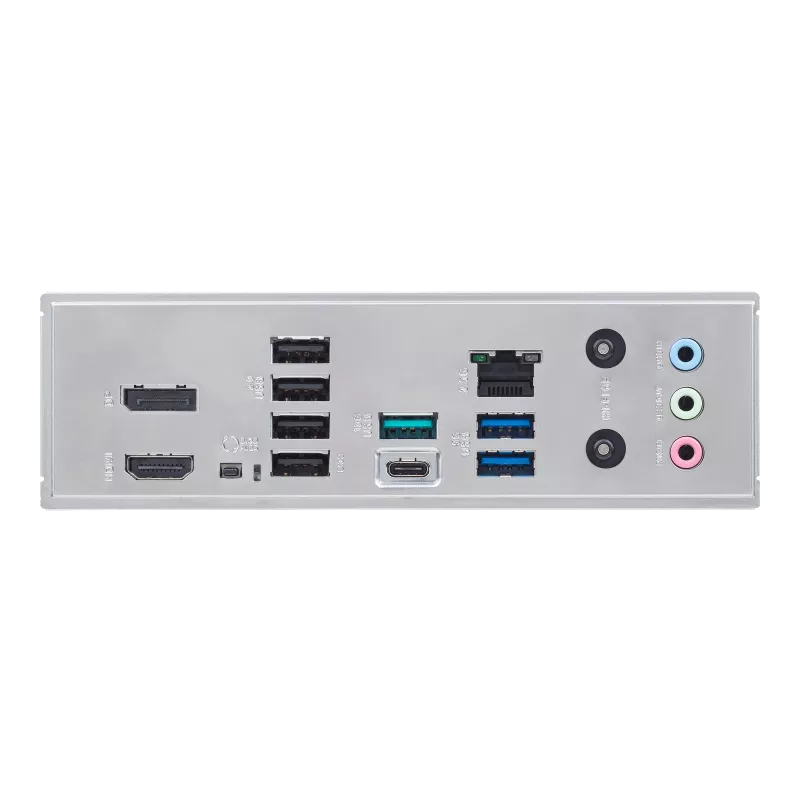

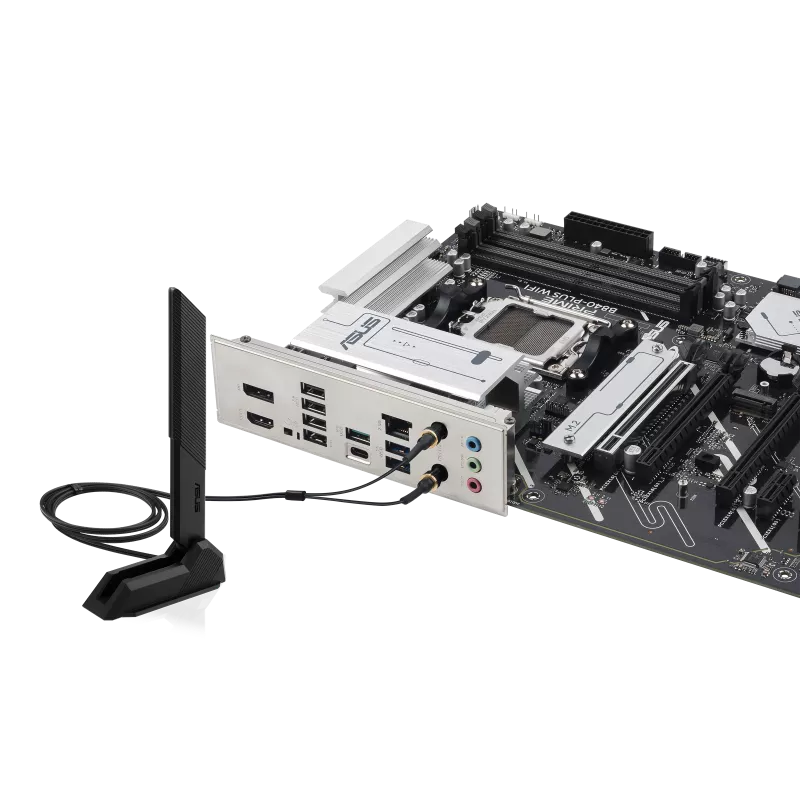

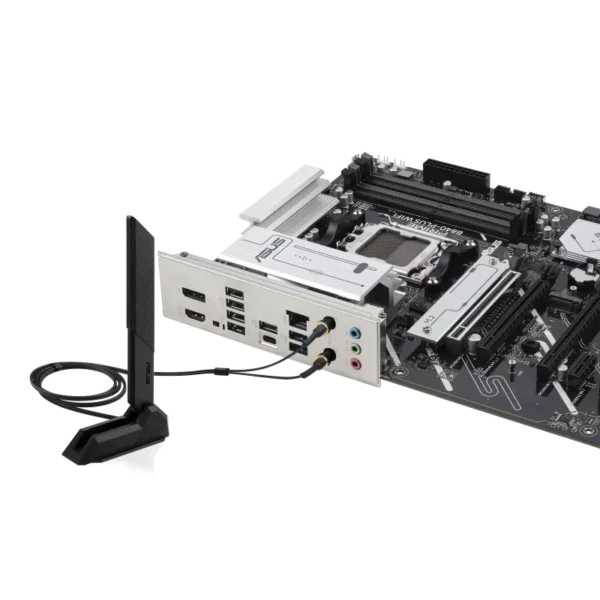

| Back Panel I/O Ports | 1 x USB 10Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |

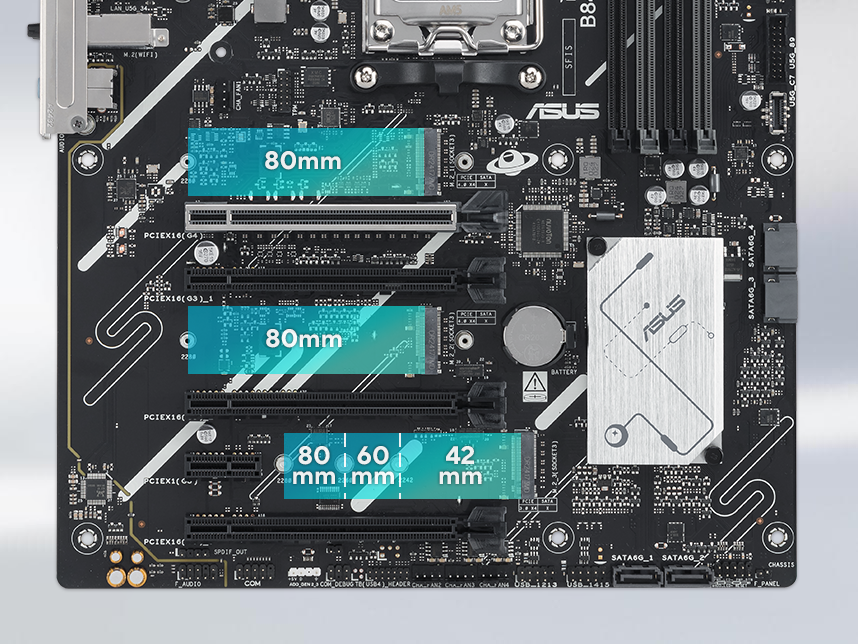

| Internal I/O Connector | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
