Description

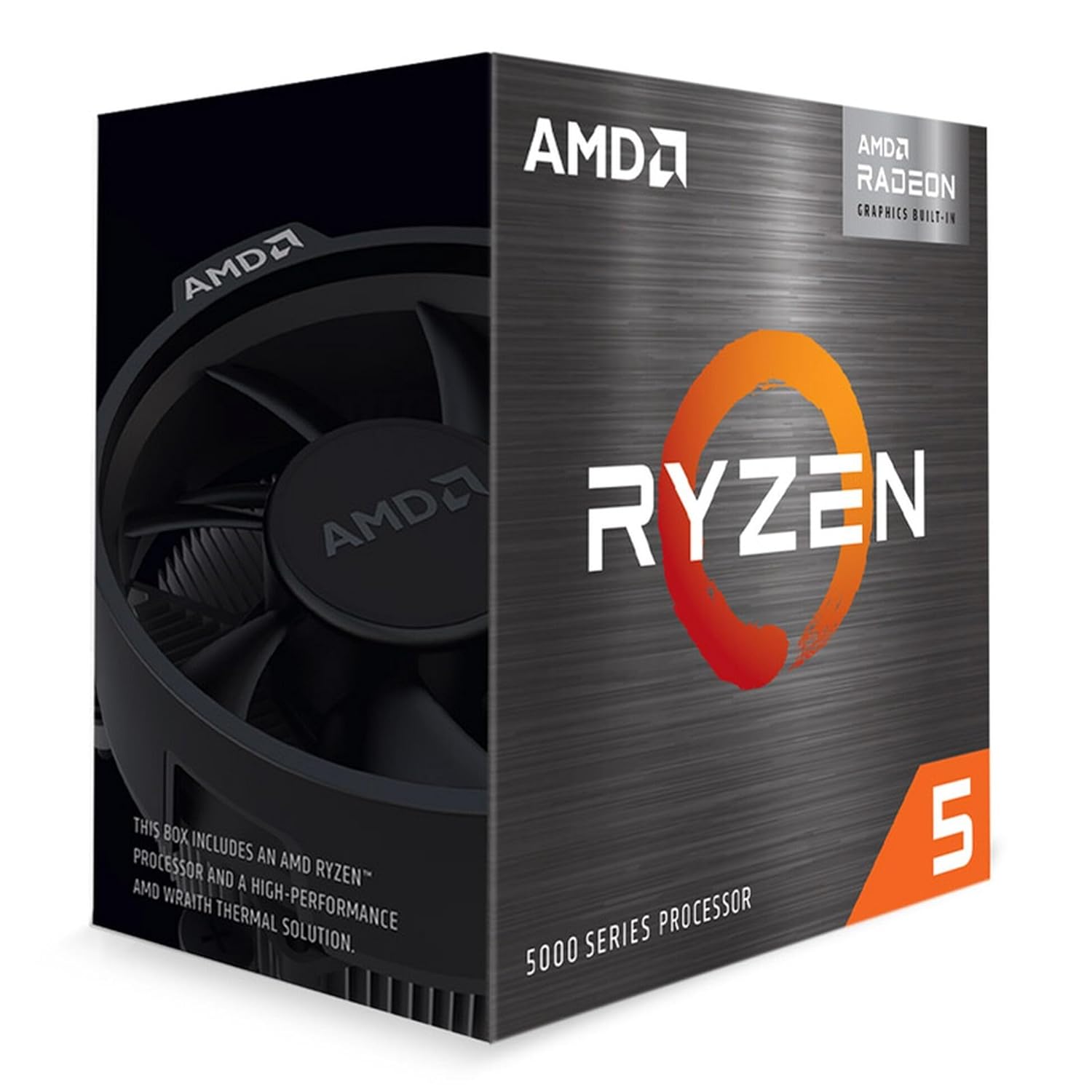

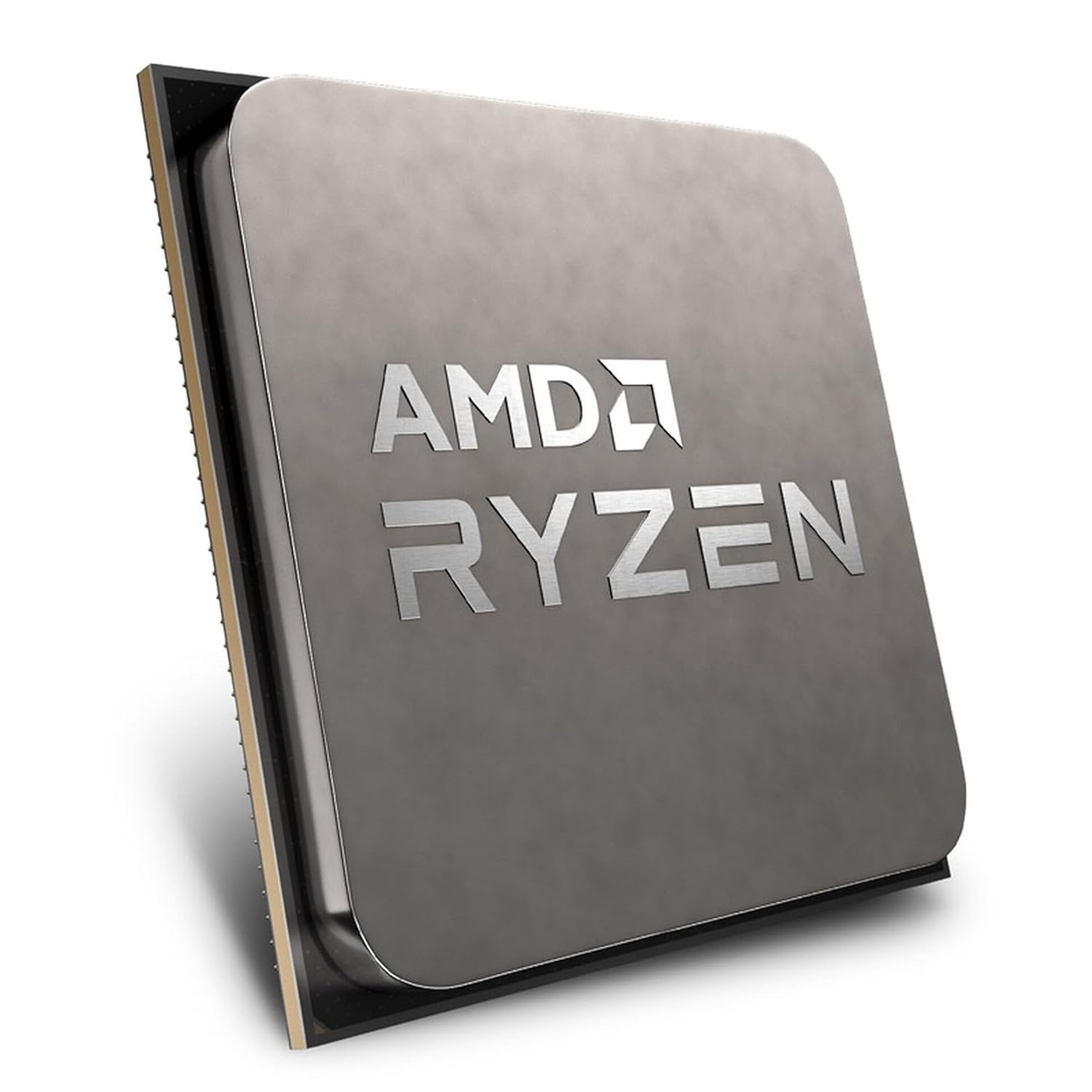

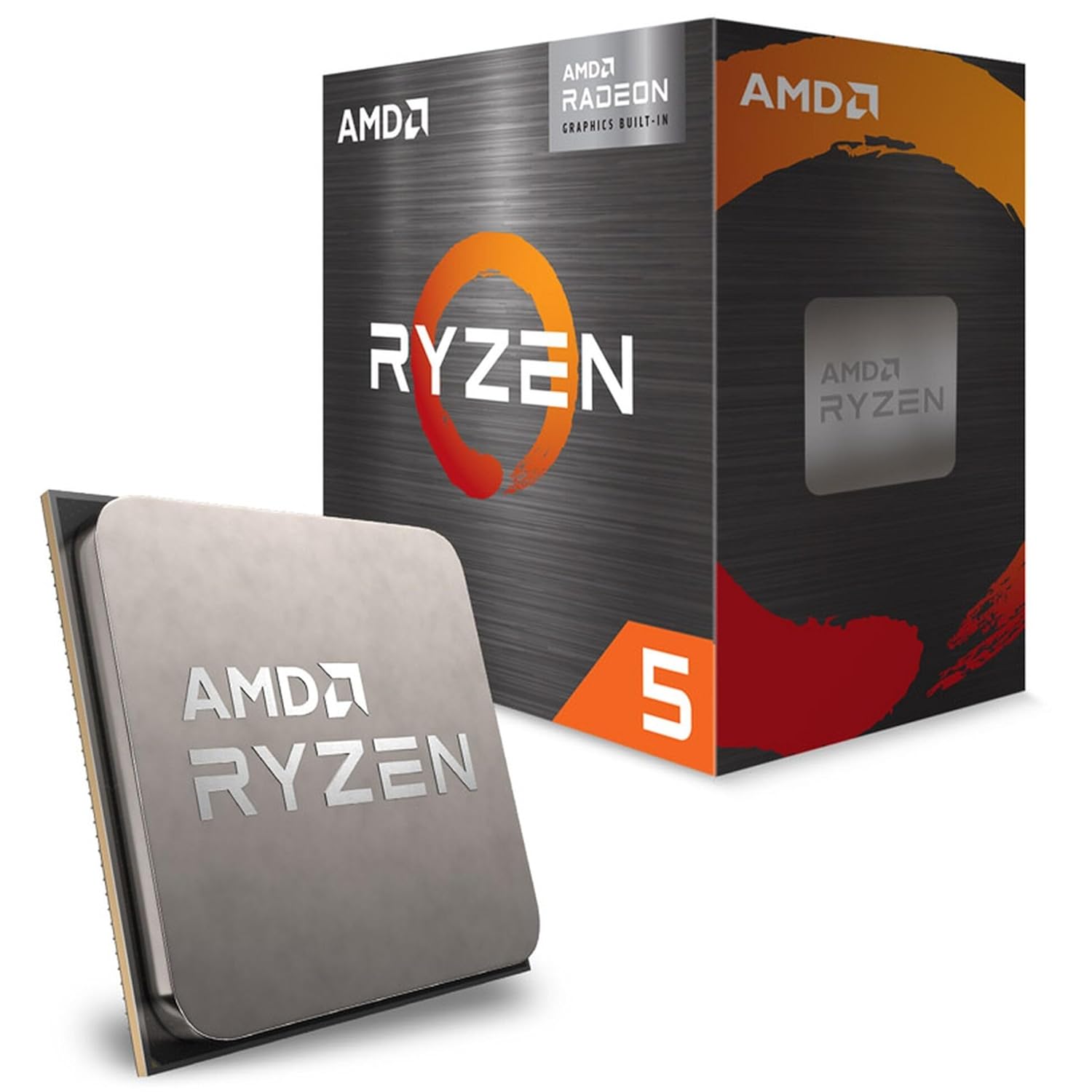

| Model | AMD Ryzen 5 5500GT |
| Platform | Boxed Processor |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics |
| Consumer Use | Yes |
| Commercial Use | No |
| Former Codename | “Cezanne” |
| Architecture | “Zen 3” |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4.4GHz |
| Base Clock | 3.6GHz |
| L1 Cache | 384KB |
| L2 Cache | 3MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |

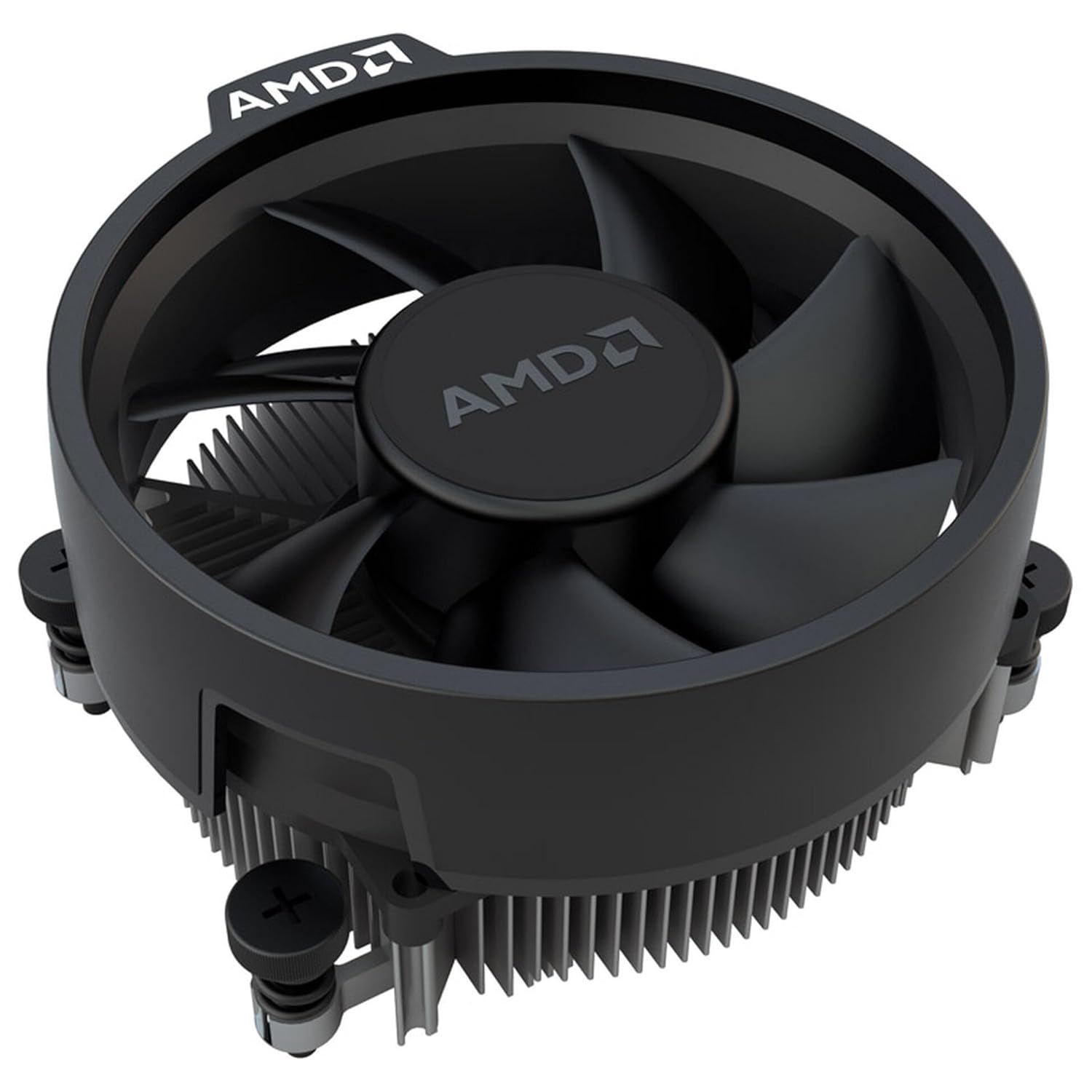

| Thermal Solution (PIB) | AMD Wraith Stealth |
| Thermal Solution (MPK) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| PCI Express® Version | PCIe® 3.0 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
|
| Graphics Capabilities | |
| Integrated Graphics | Yes |
| Graphics Model | Radeon™ Graphics |
| Graphics Core Count | 7 |
| Graphics Frequency | 1900 MHz |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
