Description

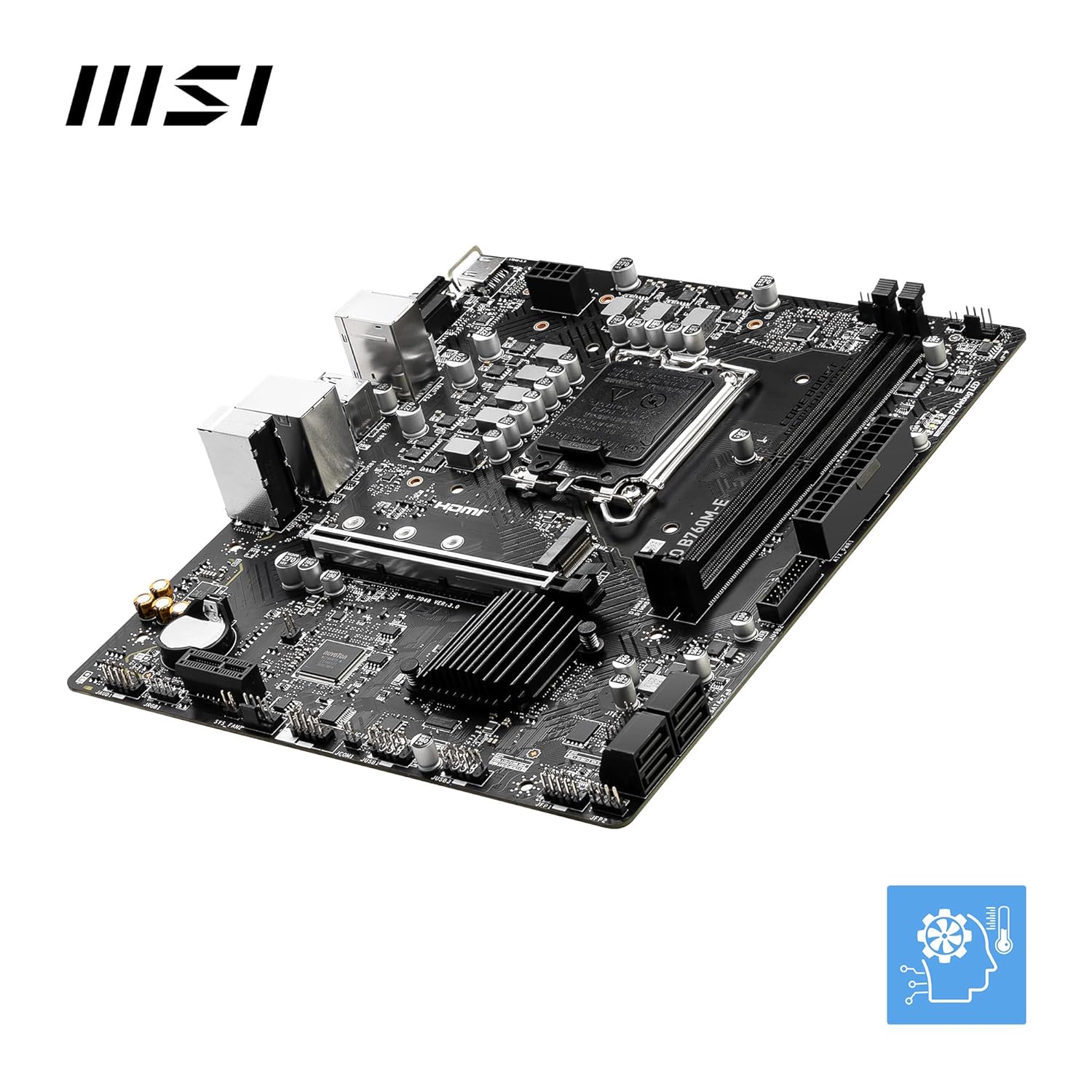

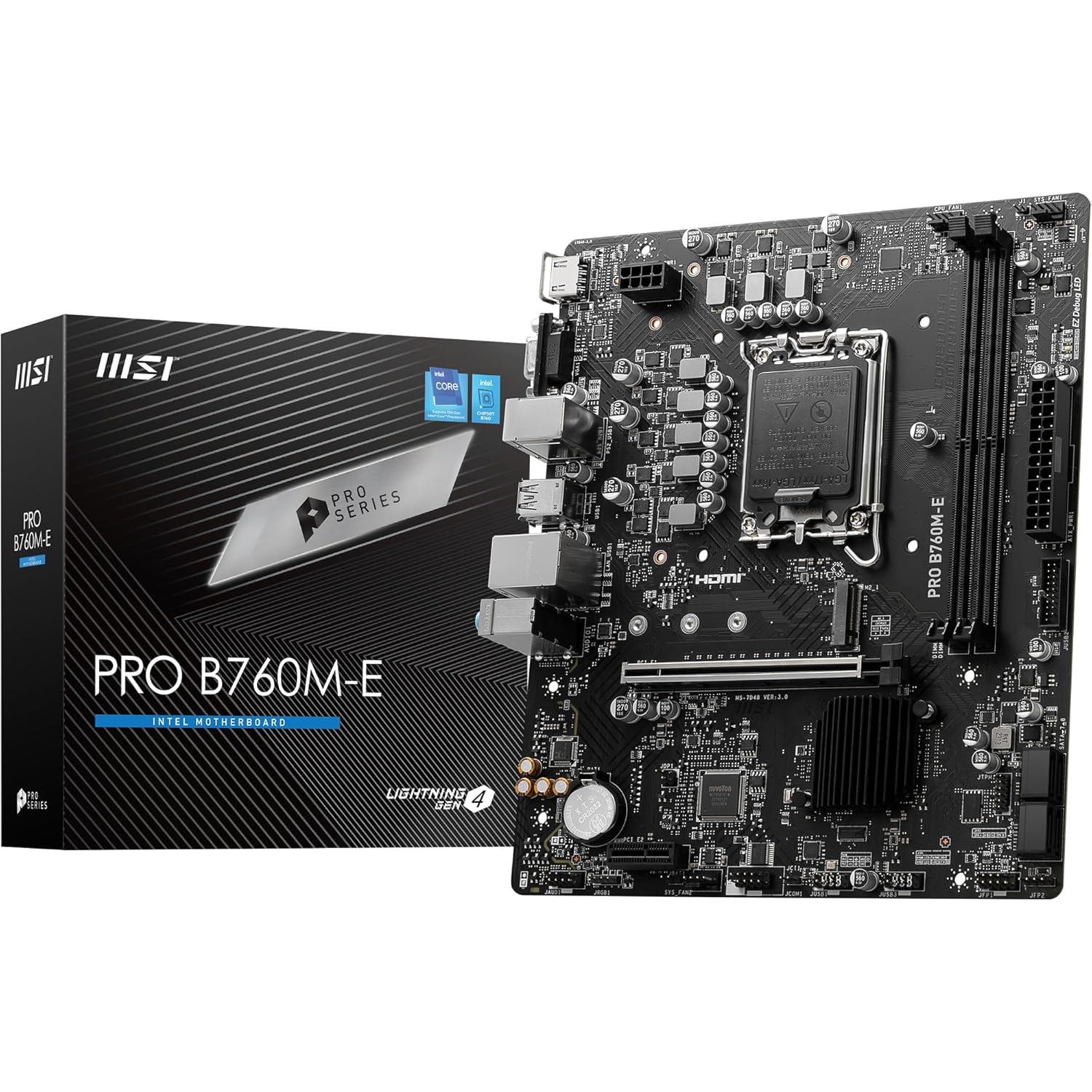

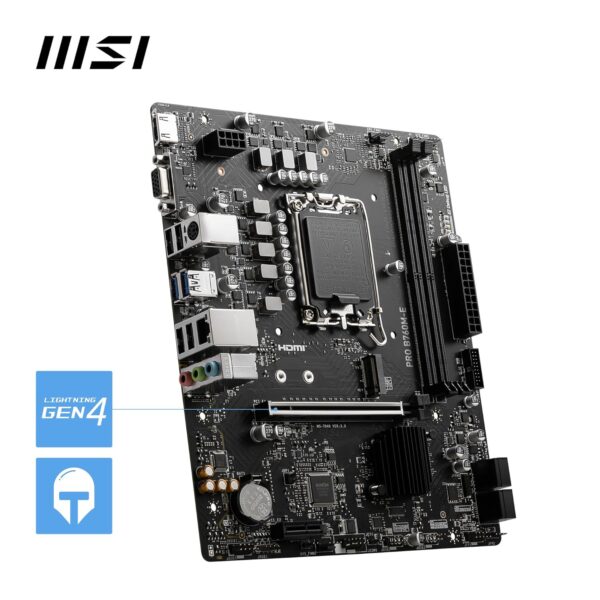

| Model | PRO B760M-E |
| Chipset | INTEL B760 |
| CPU SUPPORT | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT |
|
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
|
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O |
|
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension (W × L) | mATX 200mmx236.16mm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. Images use for Representation Purpose Only. |
