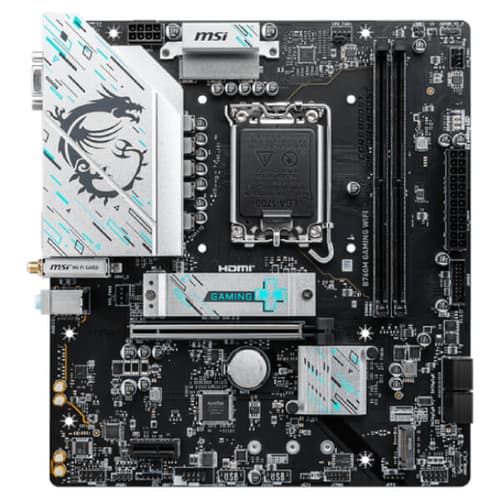

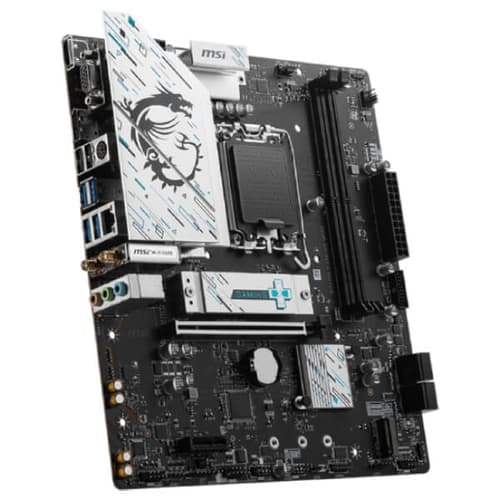

MSI B760M Gaming WiFi Motherboard, mATX — Supports Intel 14th, 13th & 12th Gen Core Processors, Socket LGA 1700 – DDR5

Original price was: ₹20,999.00.Current price is: ₹12,999.00. (incl. tax)

**All prices are updated under GST 2.0
Earliest estimated delivery date: Mar 2, 2026
Compare
SKU: B760M Categories: , Brand:
Trust Badge Image

Description

ModelB760M GAMING WIFI
ChipsetINTEL B760
CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
Memory2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:

  • 1DPC 1R Max speed up to 8000+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics1x HDMI

  • Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

1x DisplayPort

  • Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

  • Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
  • 1x PCI-E x16 slot
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage
  • 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

  • 4x SATA 6G

* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
LANRealtek RTL8125B 2.5Gbps LAN
WIRELESS LAN & BLUETOOTHIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
LED FEATURE4x EZ Debug LED
BACK PANEL PORTS
  • VGA
  • Keyboard / Mouse
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • HDMI™
  • DisplayPort
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit
PCB InfomATX
220mmx243.84mm
Warranty3 Years
Note*** Images are for Representation purposes only

*** Features, Price, Specifications are subject to change without notice.

Additional information

Weight1500 g
Dimensions24.5 × 5 × 22 cm
Brands Motherboards

MSI

Motherboard Chipset

B760

Motherboard Form Factor

M-ATX

Motherboard Platform

Intel

Motherboard RAM Type

DDR5

Motherboard Socket

LGA1700
