Description

• CPU
  LGA1200 package:
  – 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
  L3 cache varies with CPU
  (Please refer “CPU Support List” for more information.)

• Chipset
  Intel® Q470 Express Chipset

• Memory
  10th Generation Intel® Core™ i9/i7 Processors:
  – Support for DDR4 2933/2666/2400/2133 MT/s memory modules
  10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® Processors:
  – Support for DDR4 2666/2400/2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)

• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

• Expansion Slots
  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface
  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  – 2 x SATA 6Gb/s connectors
  RAID 0 and RAID 1 support for NVMe SSD storage devices
  * Supported with an additional PCIe to M.2 NVMe SSD adapter card.RAID 0, RAID 1, and RAID5 support for SATA storage devices

• USB
  Chipset:
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x serial port header
  1 x Clear CMOS jumper

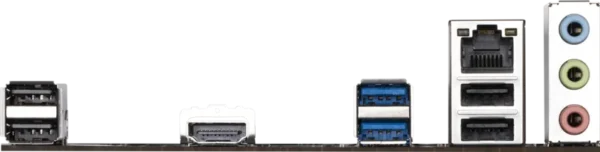

• Back Panel Connectors
  1 x HDMI port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• I/O Controller
  iTE® I/O Controller Chip

• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features
  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS
  – Ambient LED
  – EasyTune
  – Smart Backup
  – System Information Viewer
  Support for Q-Flash

• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor
  Micro ATX Form Factor; 22.6cm x 18.5cm
• Note  ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
