Description

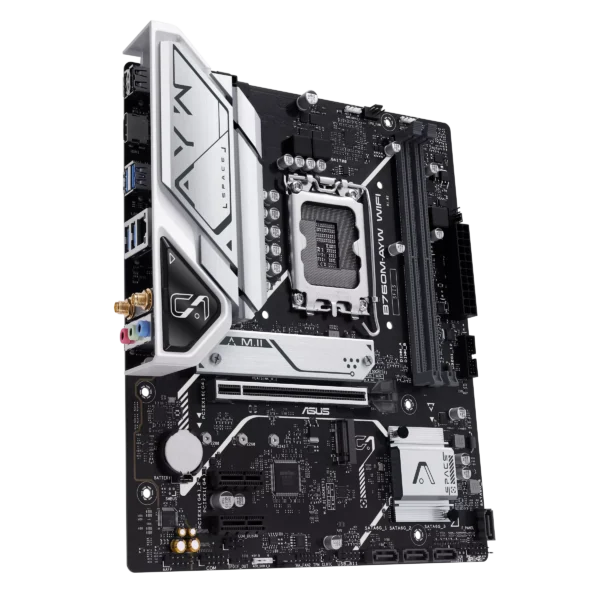

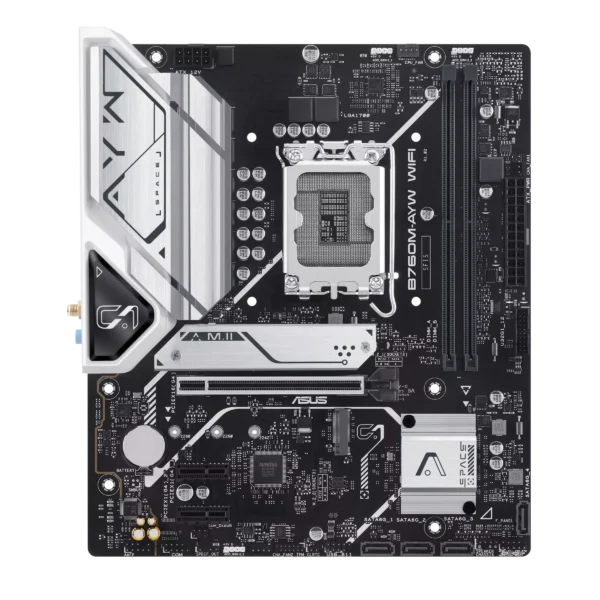

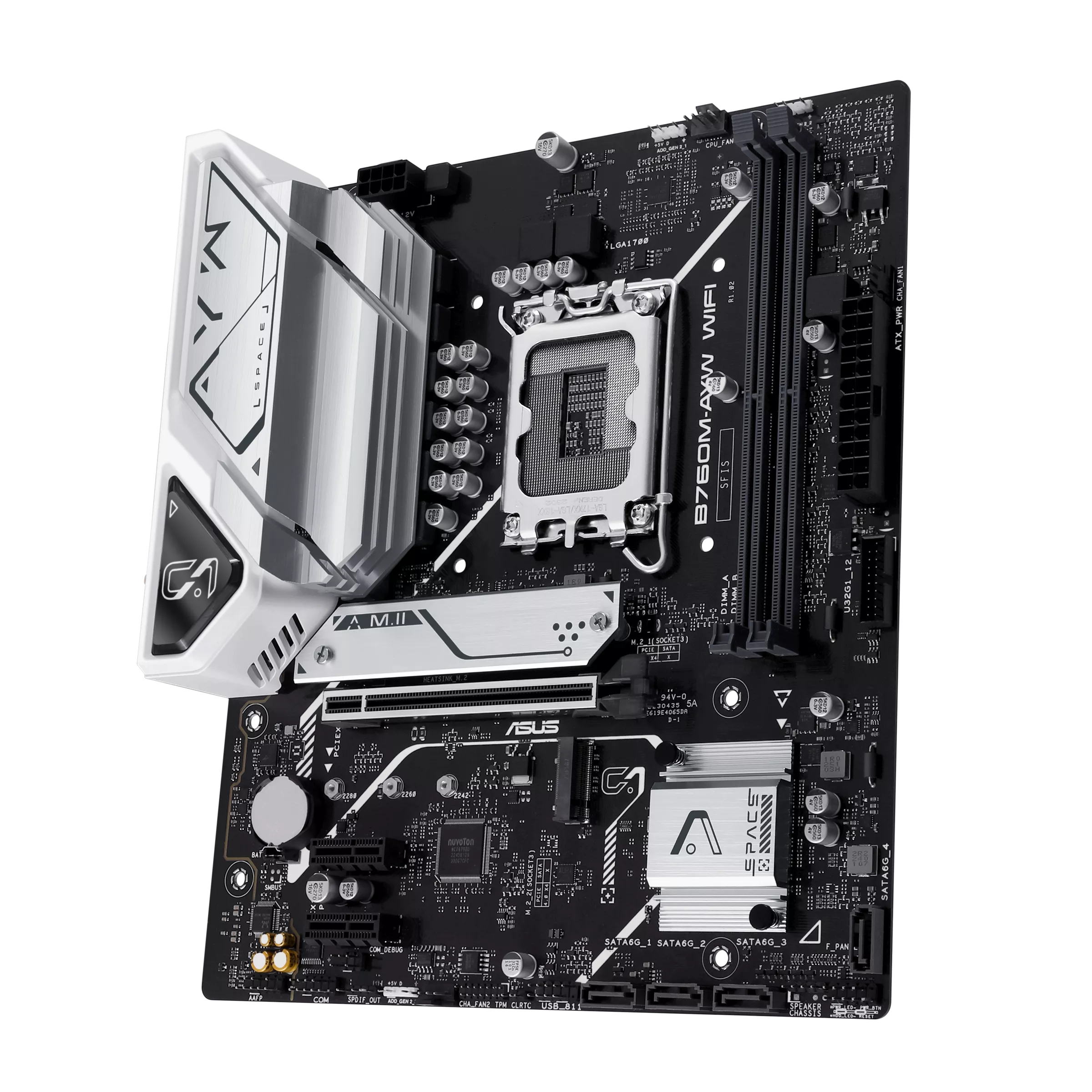

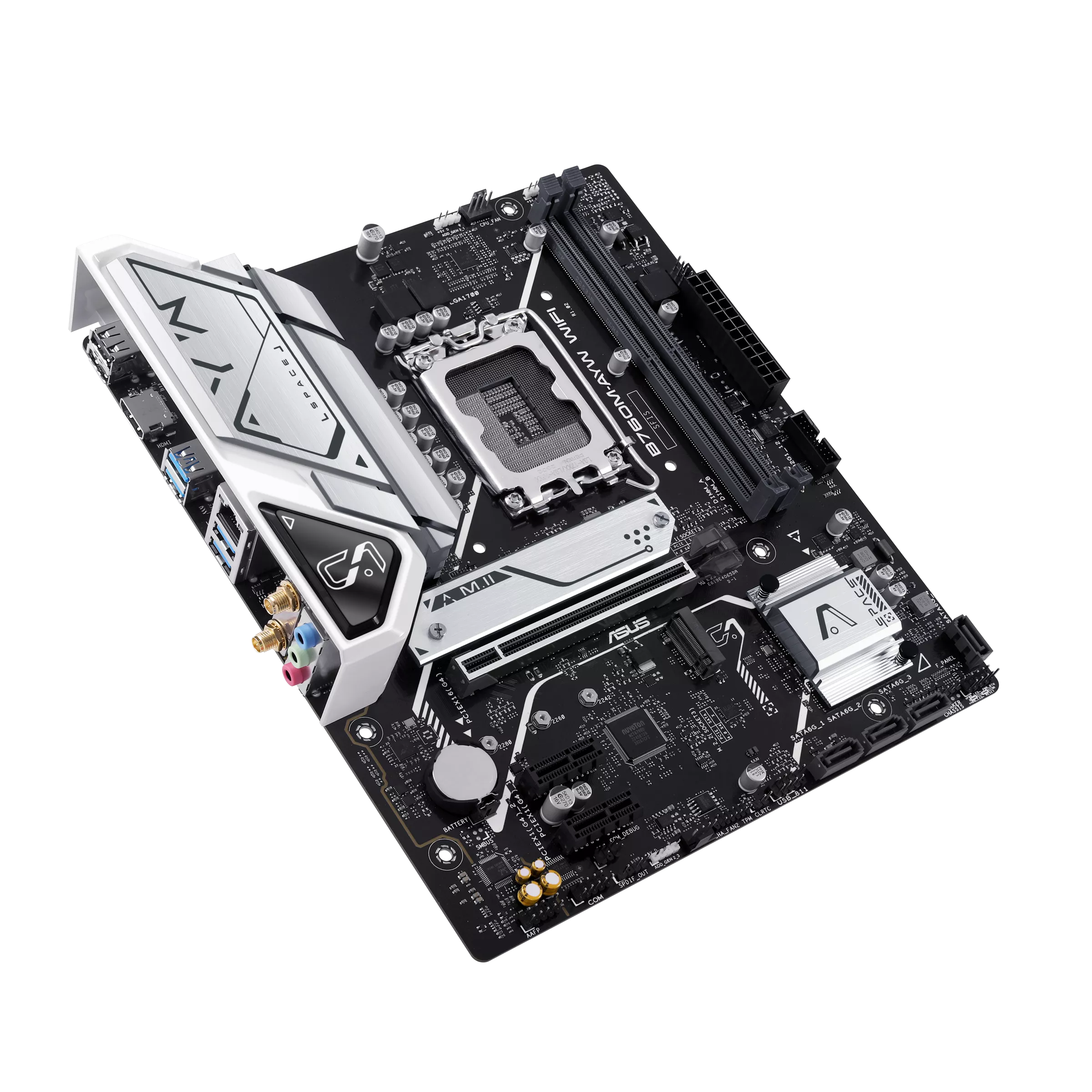

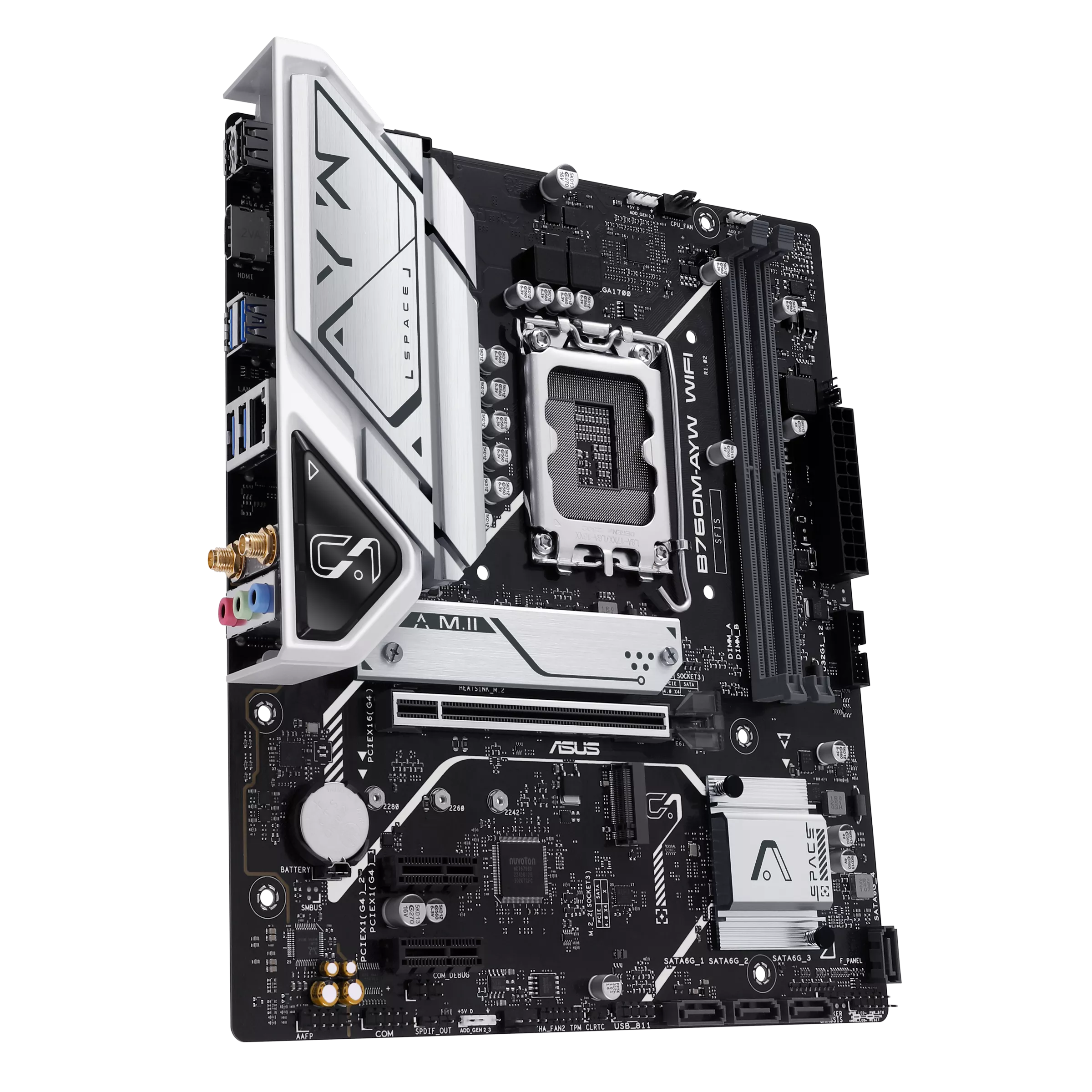

| Model: | B760M-AYW-WIFI |
| CPU: | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset: | Intel B760 Chipset |
| Memory: | 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/ 7400(OC)/7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
|
| Graphics: | 1 x HDMI port |
| Expansion Slots: | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Storage: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet: | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth: | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB: | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) Front USB (Total 4 ports) |
| Audio: | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playbackAudio Feature:– Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

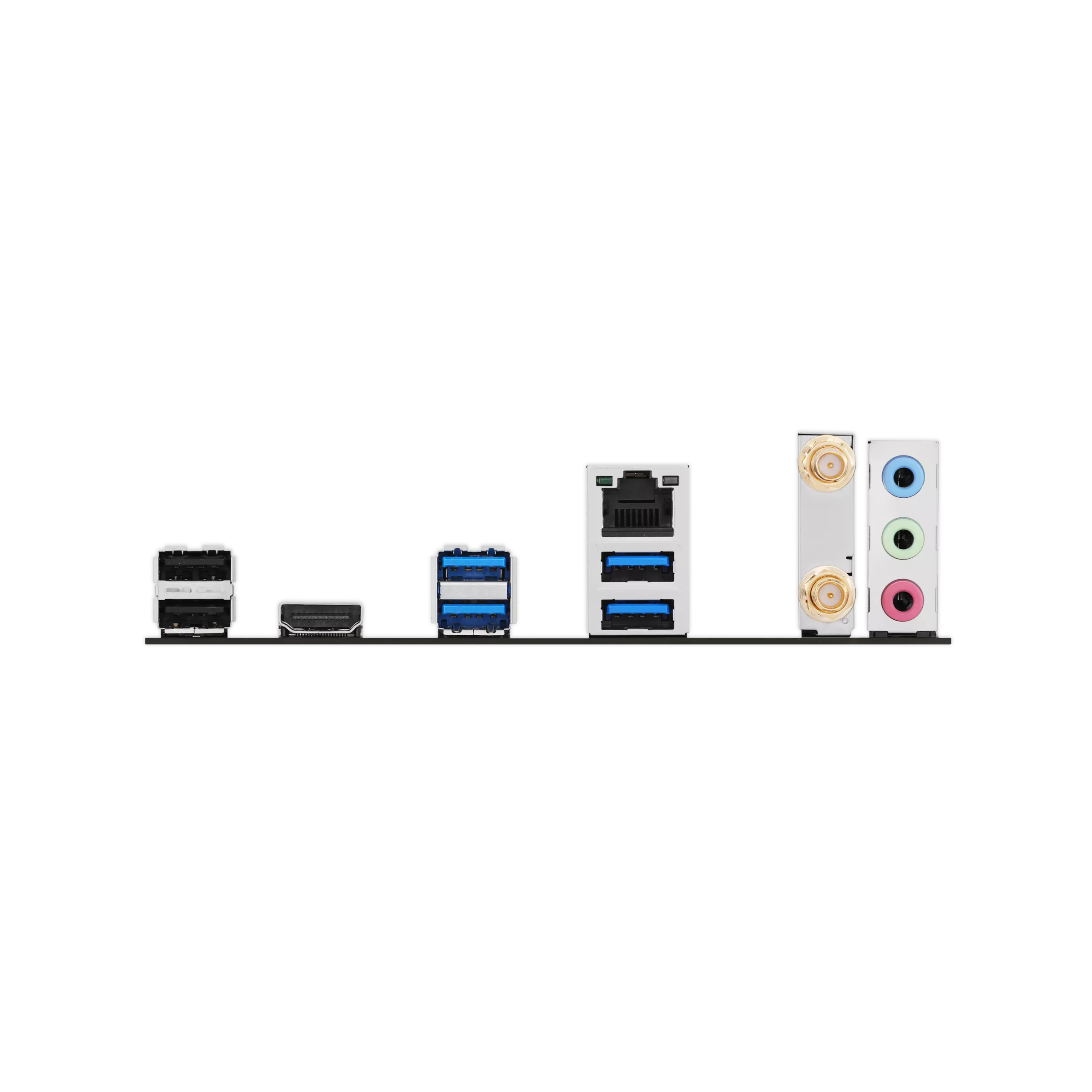

| Back Panel I/O Ports: |
|

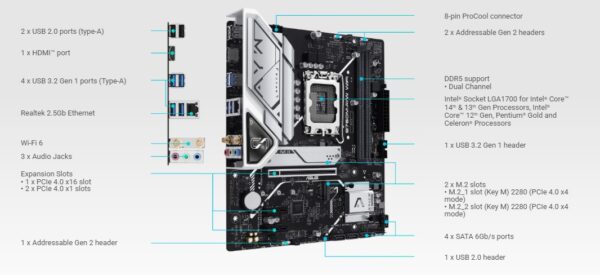

| Internal I/O Connectors: | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Feature: | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core + – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – M.2 heatsink – VRM heatsink design Aura Sync – Addressable Gen 2 headers |
| Software Features: | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability: | WOL by PME, PXE |

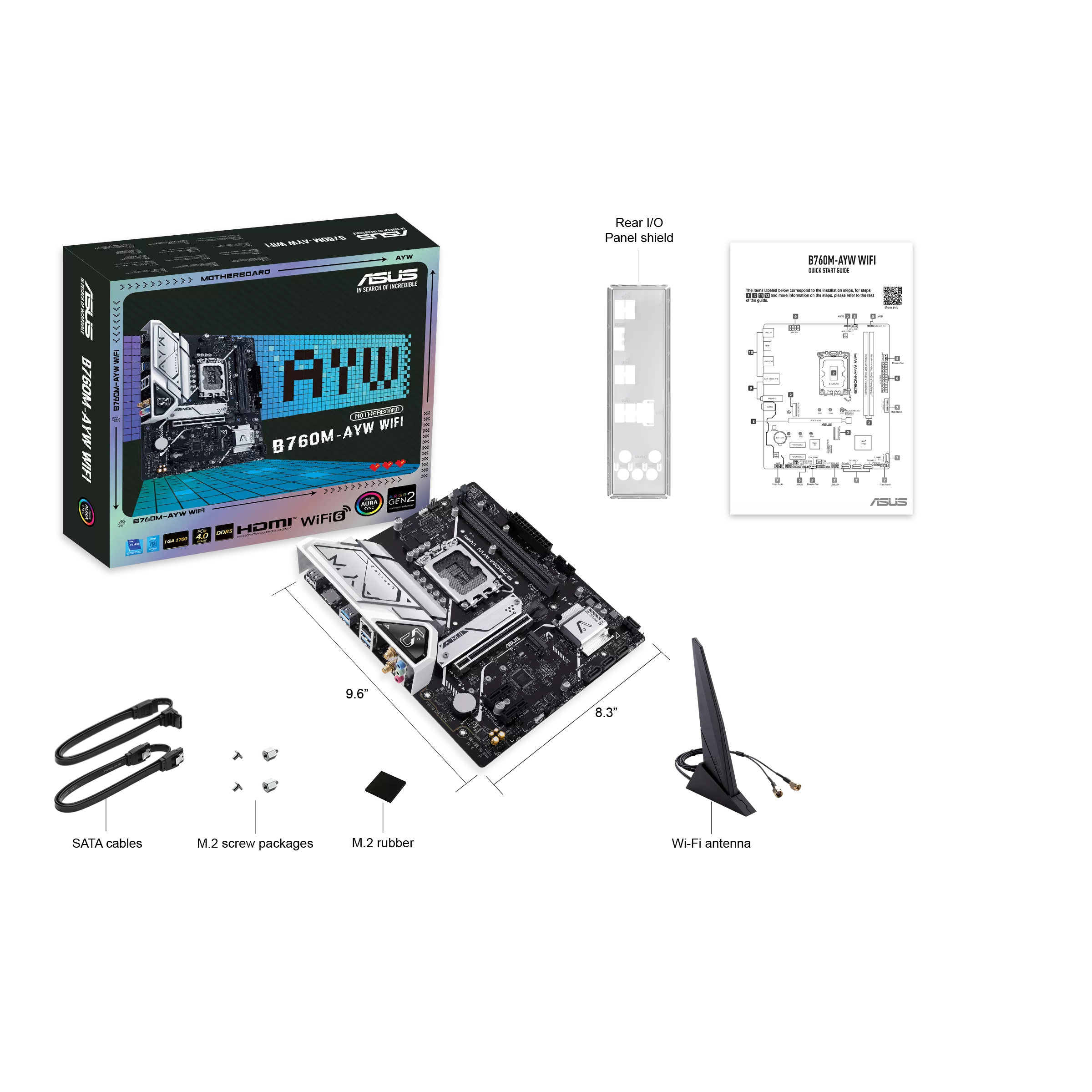

| Accessories: | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide |
| Operating System: | Windows 11, Windows 10 64-bit |
| Form Factor: | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Warranty: | 3 Years |
| Note | ***Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
