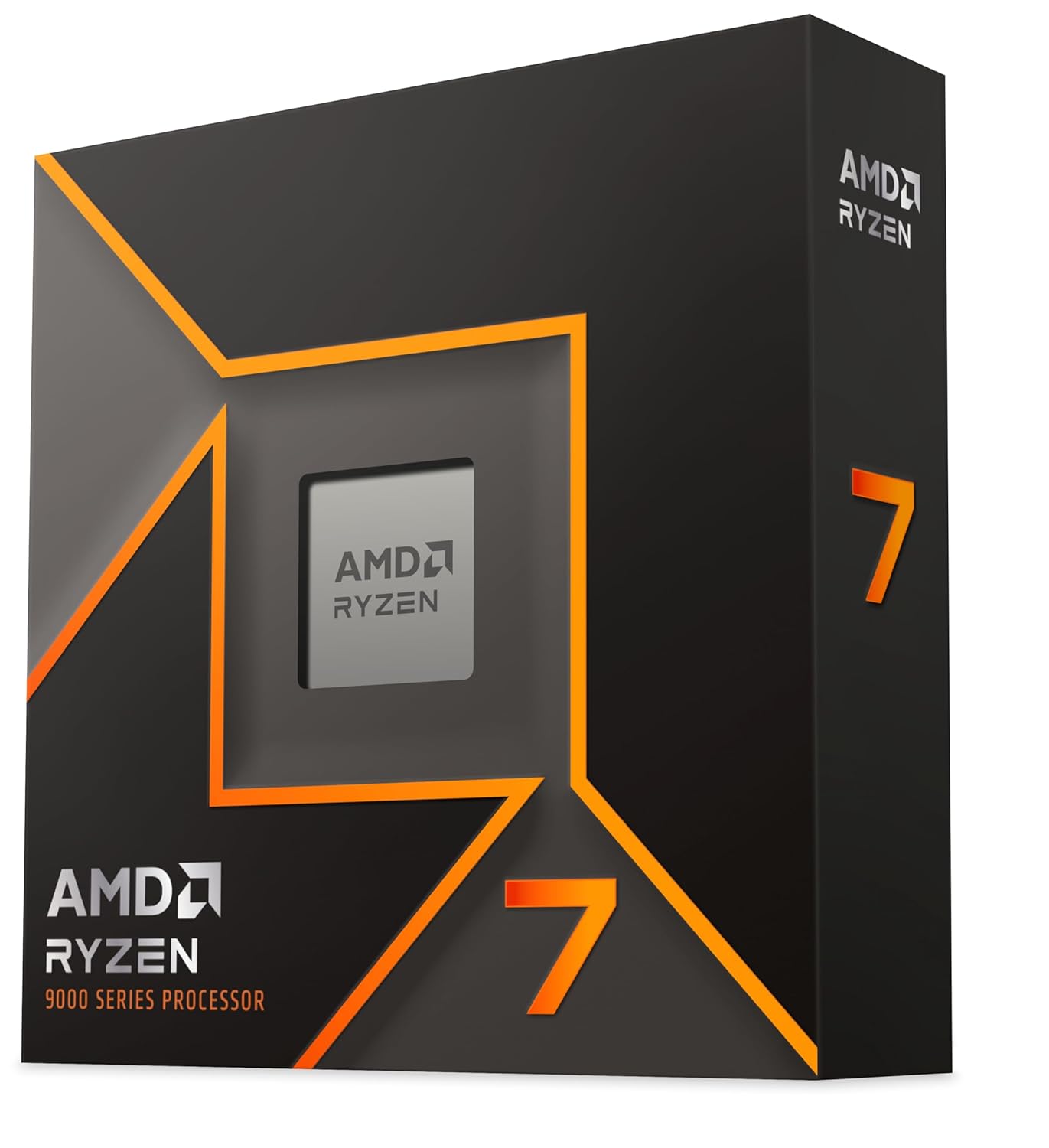

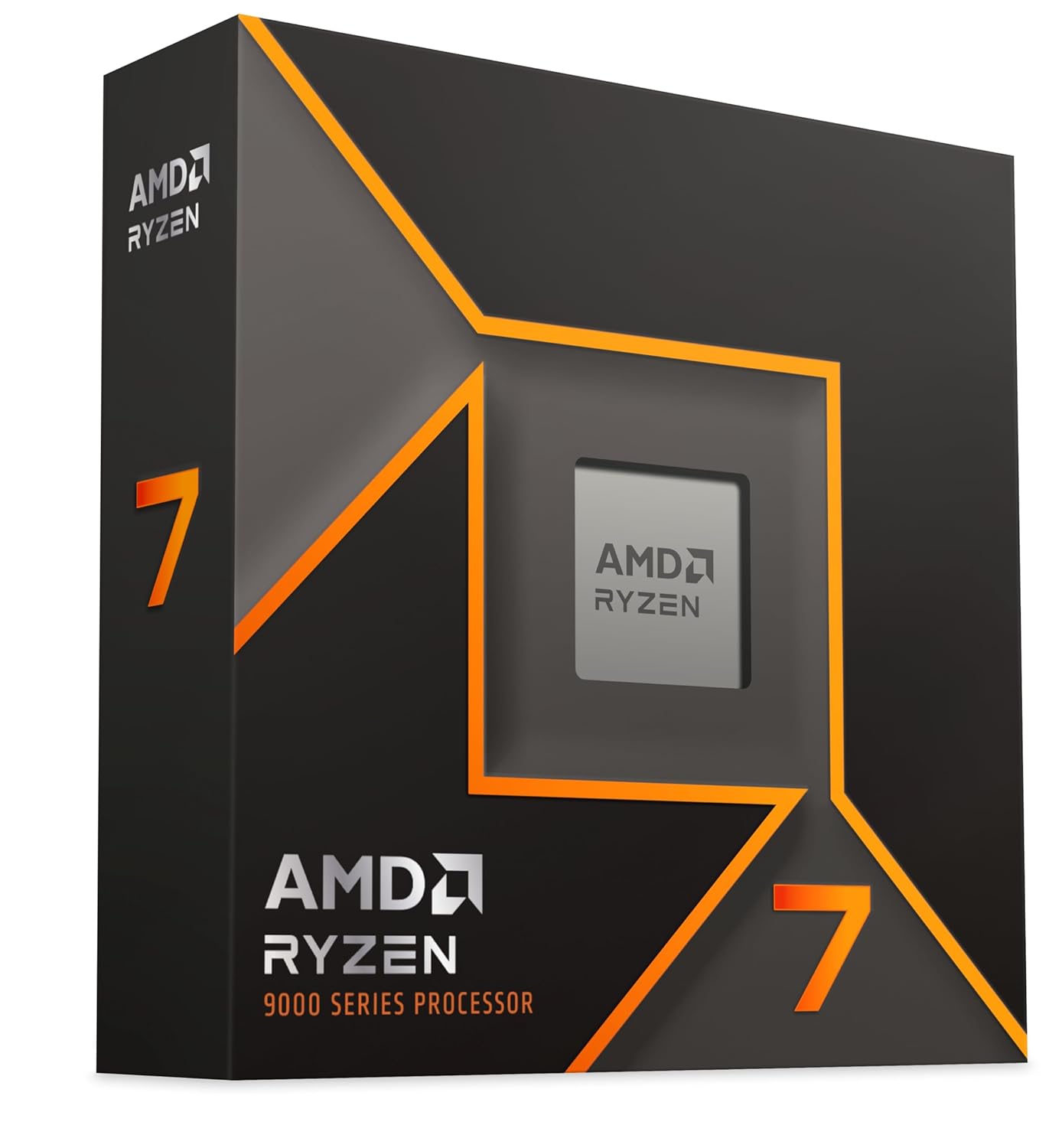

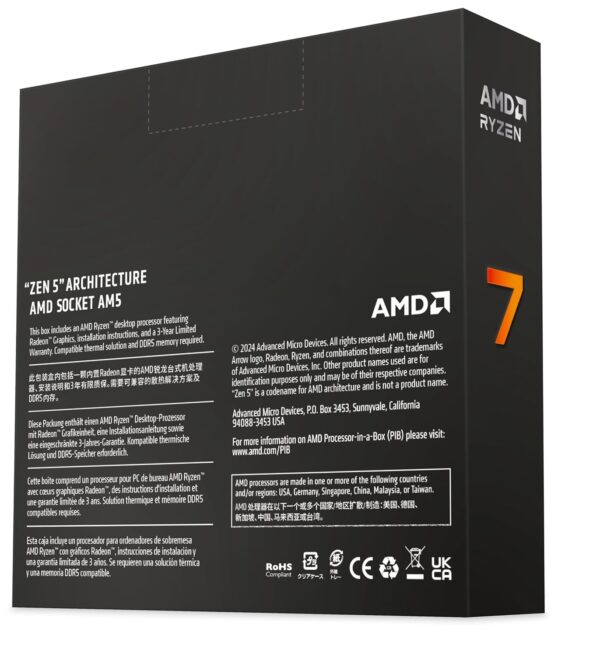

AMD Ryzen 7 9700X Desktop Processor with Integrated Radeon Graphics, 8 cores 16 Threads 32 MB Cache Base Clock 3.8 GHz Up to 5.5 GHz AM5 Socket

Description

• Model	AMD Ryzen 7 9700X
  Family	Ryzen
  Series	Ryzen 9000 Series
  Form Factor	Desktops , Boxed Processor
  AMD PRO Technologies	No
  Consumer Use	Yes
  Regional Availability	Global
  Former Codename	Granite Ridge AM5
  Architecture	Zen 5
  # of CPU Cores	8
  Multithreading (SMT)	Yes
  # of Threads	16
  Max. Boost Clock	Up to 5.5 GHz
  Base Clock	3.8 GHz
  L1 Cache	640 KB
  L2 Cache	8 MB
  L3 Cache	32 MB
  Default TDP	65W
  Processor Technology for CPU Cores	TSMC 4nm FinFET
  Processor Technology for I/O Die	TSMC 6nm FinFET
  Package Die Count	2
  Unlocked for Overclocking	Yes
  AMD EXPO Memory Overclocking Technology	Yes
  Precision Boost Overdrive	Yes
  Curve Optimizer Voltage Offsets	Yes
  AMD Ryzen Master Support	Yes
  CPU Socket	AM5
  Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870
  CPU Boost Technology	Precision Boost 2
  Instruction Set	x86-64
  Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
  Thermal Solution (PIB)	Not Included
  Recommended Cooler	Premium air cooler recommended for optimal performance
  Max. Operating Temperature (Tjmax)	95°C
  *OS Support	Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
  Connectivity
  Native USB 3.2 Gen 2 (10Gbps) Ports	4
  Native USB 2.0 (480Mbps) Ports	1
  PCI Express Version	PCIe 5.0
  Native PCIe Lanes (Total/Usable)	28 , 24
  Additional Usable PCIe Lanes from Motherboard	X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4
  NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
  System Memory Type	DDR5
  Memory Channels	2
  Max. Memory	192 GB
  System Memory Subtype	UDIMM
  Max Memory Speed	2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600
  ECC Support	Yes (Requires mobo support)
  Graphics Capabilities
  Graphics Model	AMD Radeon Graphics
  Graphics Core Count	2
  Graphics Frequency	2200 MHz
  USB Type-C DisplayPort Alternate Mode	Yes
  Key Features
  Supported Technologies	AMD EXPO Technology , AMD Ryzen Technologies
  Warranty	3 Years
